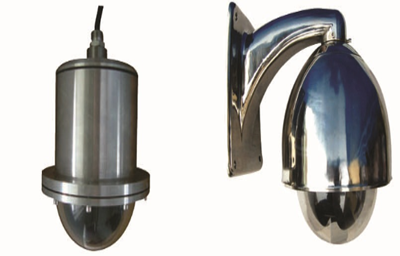

Ex-proof dome/hemispheric camera system can be used under II C gas group condition (for example H2, C2H2, C2H4, coke oven gas and dimethyl ether) and some full of combustible dust environment. In accordance with the standard IEC60079, IEC21641,GB3836-2010 and GB12476.1-2000.
This model with highly tight structure, simple circuit, less heat dissipation, it has better performance under high temperature condition. It includes swift tracker, 360°infinite rotation, 180°self-rotation, various scanning and display menu.
Specification
| Model | BYD-EQ07 / BYD-EQ035 | ||
| Standard | GB3836-2010 and GB12476.1-2000 | ||
| Ex-proof Mode | EXd II CT6 Gb/DIP A21 TA,T6 | ||
| Protection Glass | IP68 | ||
| Working Temperature | -45℃~60℃ | ||
| Wiring Port | 1 G3/4'' ex-proof inlet port, inner diameter φ15 | ||
| Material | 304 / 316 / 316L double layers stainless steel | ||
| Motor | Italian MAE stepper motor, presetting bit accuracy 0.02° | ||
| Retraction | conductive slip ring, high strength aluminum alloy(LY12) gear, with precision sync. belt | ||
| Digital Port | Communication | integrated multiprotocol (PELCO-D,P),RS-485 | |
| Baud Rate | 2400 / 4800 / 9600 bps | ||
| IP Port | Port Type | RJ45 10 / 100base - T adaptive gate | |
| IP Protocol | TCP / IP, HTTP, DHCP, DNS, DDNS, RTP / RTSP, PPPoE, SMTP, NTP | ||
| Camera | Mode | Analog SD | Digital HD |
| Video Resolution | Sony 1/4'' Exview HAD | 720P / 1080P HD | |
| Min Sensitivity | Color 0.7Lux | Color 1.0Lux | |
| Day to Night | black & white 0.002Lux | black & white 0.1Lux | |
| Presetting Bit | 128 | ||
| Cruise Trajectory | 6-path cruise trajectory | ||
| Horizontal / Elevation Angle | horizontal 360°infinite, elevation -2°~90°(180°auto rotation) | ||
| Horizontal / Elevation Speed | horizontal 0.2°~240°/s, elevation 120°/s, line scanning 25°/s | ||
| Alarm | 8-path alarm input, 2-path alarm output | ||
| Power Pressure | 12V DC/220V AC | ||
