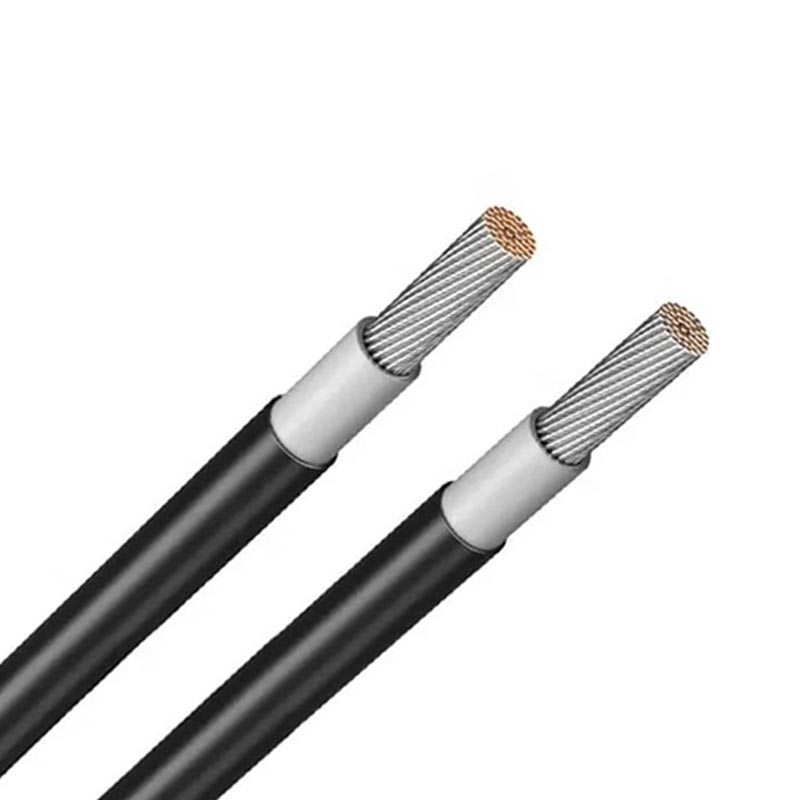

UL4703 PV Wire

Name： UL4703 PV Wire 600V

Certification:

UL Approval UL4703 600V

18AWG～2AWG

Technical data:

Rated voltage(U): 600VAC

Test voltage(U0): U=600V

18~10AWG,U0=3000V,50HZ,1Min

8~2AWG,U0=3500V,50HZ,1Min

Maximum temperature for conductor : +120°C

Ambient temperature: –40°C up to +90°C



Name： UL4703 PV Wire 1000 OR 2000V


Technical data

Nominal voltage(U): 1000 OR 2000VAC

Test voltage(U0):

U=1000V,2000V

18~10AWG,U0=6000V,50HZ,1Min

8~2AWG,U0=7.5KV,50HZ,1Min

1/0~4/0AWG,UO=9.0KV,50HZ,1Min

Conductor maximum temperature: +120°C
