Flat spraying line

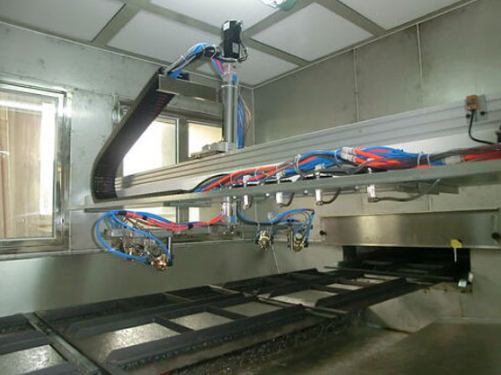

Flat reciprocating spraying line

Suitable accessories: TV, stereo, mouse, computer keyboard, laptop case, hot water bottle

Spraying method: multi joint robotic arm, reciprocating machine, manual spraying (can stop spraying, can track spraying)

Baking method“

Tunnel oven/box type forced oven, equipped with far-infrared heating IR lamp

Painting environment: painting room level 10000, workshop level 100000, and adjustable temperature and humidity

Output: depends on the fixture method of the workpiece and the baking time of the coating, as well as the line speed

Process flow;

Ordinary paint: clamping - manual electrostatic dust removal - online - preheating and dehumidification - painting - leveling - surface drying - curing - natural cooling - lower part inspection

UV paint: clamping - manual electrostatic dust removal - online - preheating and dehumidification - painting - surface drying - lower part - curing - natural cooling - lower part inspection

Automatic spraying production line for workpiece rotation

Suitable accessories: spray coating of plastic workpieces such as mobile phones, power banks, mobile hard drives, cameras, hot water kettles, etc

Spraying method: multi joint robotic arm, coordinate robotic arm, fixed grab type (can stop spraying, can track spraying)

Baking method "tunnel circuitous oven equipped with far-infrared heating infrared lamp, painting environment: painting room level 10000, workshop level 100000, and constant temperature and humidity adjustable

Output: depends on the fixture method of the workpiece and the baking time of the coating, as well as the line speed

Process flow;

UV line: loading ->manual dust removal ->material preheating ->automatic electrostatic dust removal ->automatic spraying 3 (surface coating) ->standing ->IR ->cooling ->UV curing ->cooling ->unloading

Primer line: loading - manual dust removal - material preheating - automatic electrostatic dust removal - bottom water spraying - preheating - automatic spraying - standing - ir - cooling - cutting

Intermediate paint: loading - manual dust removal - material preheating - automatic electrostatic dust removal - automatic spraying -2- static IR - cooling - unloading

UV line: loading - manual dust removal - material preheating - automatic electrostatic dust removal - automatic spraying 3- standing - IR - cooling - UV curing - cooling - unloading

The above is for reference only: the specific situation depends on the coating performance, fixture design, workpiece shape, and testing requirements to design
