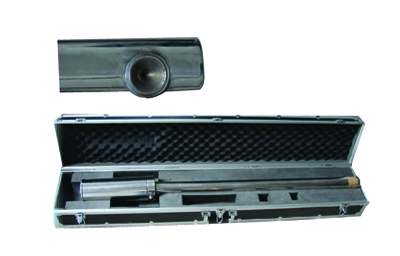

We offers the portable high temperature endoscope used for in-production and in-maintenance inspections, inside working furnaces of which temperature may reach 2000°C.
The video images on TV monitor enable precise analysis to be carried out of areas that cannot be seen by the human eyes.
Such as glass-making application, this system can inspect the extent of wear of refractory surfaces or furnace arches.
Applied in Glass furnace, Cement kiln, Metal reheatfurnacePower boiler etc.
Specification
| Environment | Up to 2000℃ | H.Resolution | More than 480 TV lines |
| Cooling System | Vortex air / Water cooling | Video Output | Composite Video, 1 Vp-p, 75 |
| Transmission Device | Pneumatic(SG-FL) or motorized (SG-FL/D) | S/N Ratio | More than 50dB(AGC off) |
| Furnace Wall Thickness | 400-4000mm | Shutter Speed | 1/50~1/100000(10 steps) |
| Sealing Device | ball chuck or ball valve | Min Illumination | 0.2Lux(F1.2, 30 IRE) / 0.001Lux(F1.2, X128 DSS) |
| Power | AC 220V 10W | Power Source | AC24V |
| Requirement of compressed air | Power Consumption | Max.6W | |
| Pressure | 0.2~0.7MPa | Pinhole lens | |
| Volume Flow | 5-15m³/h | Lens Length | 1100-4000mm |
| Temperature | ≤35℃ | Focal Length | Fixed 3.5mm or adjustable from 3.6-18mm |
| Quality | Industrial air or instrument air | Lens Elbow Angle | 60° / 75° / 90° |
| Requirement of cooling water | Angle of View | 10°-100° | |
| Inlet Pressure | 0.1~0.7MPa | Lris | manual or motorized or fixed |
| Volume Flow | 0.2-1m³/h | Image Format | 1/3" |
| CCD Camera | Mount | CS | |
| Image Sensor | 1/3"Sony Color CCD Sensor | ||
