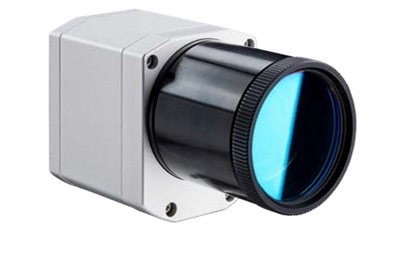

Imported 764x480 detector
Professional temperature analysis software
Small size, light weight, easy integration
Support multiple mainstream network protocols
Support WEB side access
Support ONVIF protocol
Support early warning function
Widely used in rotary kiln heads, heating furnaces, glass melting furnaces, blast furnaces, submerged arc furnaces, incinerators, reforming furnaces, experimental furnaces, etc.
Specification
| Detector | Image Processing and Display | ||
| Type | CMOS | Imaging Time | ≤10s |
| Number Of Pixels | 764x480 | Palette | various |
| Pixel Spacing | 17um | Brightness / Contrast | manual / auto |
| Wavelength Range | 500-540um | Image Mode | HDR wide dynamic range |
| Thermal Sensitivity NETD | ≤50mk@30℃ / ≤65mk@30℃ | OSD | support |
| Frame Rate | 1000HZ | Interface Module | |
| Thermometry Analysis | Data Interface | RJ45/100M | |
| Temperature Range | 900-2450℃ | Video Compression | H.264 |
| Temperature Measurement Accuracy | ±2℃(±2%) | Protocol Support | INVIF,TCP/IP,HTTP,RTP,RTSP,NTP |
| Maximum Temperature Point Tracking | support | Power Interface | 2EDGKD-3.81mm/2p |
| Minimum Temperature Point Tracking | support | Input Supply Voltage | 7-12V DC |
| The Highest Temperature Display In The Whole Show | support | Power Consumption | ＜4W / ＜6W |
| Global Minimum Temperature Display | support | Reverse Polarity Protection | yes |
| Central Point Temperature Display | support | Over And Under Voltage Protection | yes |
| Average Temperature Display | support | Lens | |
| Customize The Temperature Measurement Frame | support | Focal Length | 3.4mm, a variety of optional |
| Environmental Parameters | Focusing Method | manual / electric | |
| Operating Temperature | -40℃-70℃ | Physical Properties | |
| Storage Temperature | -40℃-8℃ | Dimensions | PCB40mmx40mm |
| Resistance To Temperature Shock | 5°C/min(-40°C-70°C) | Weight | <150g |
| Shock Resistance | 4.3g, xyz axis, 2 hours per axis | Mounting Holes | 4xM3 |
| Impact Resistance | Acceleration 25g, half sine, pulse width 6ms | ||
| Humidity | ≤95% | ||
