Attachable catalyst; Surface dust removal, stable catalyst efficiency;
Small pore diameter, large specific surface area and high catalyst efficiency;
Combined with agents, it can remove acid, sulfur and dust in an integrated way.
Specification
| Name | Length A (mm) | Outer diameter B (mm) | Inner diameter C (mm) | Flange thickness D (mm) | Flange outer diameter E (mm) | Filter element area (m ²） | Weight (kg) |
| CF1/2-1 | 500 | 60 | 40 | 20 | 80 | 0.1 | 0.5 |
| CF1-1 | 1000 | 60 | 40 | 20 | 80 | 0.2 | 0.65 |
| CF1.25-1 | 1250 | 60 | 40 | 20 | 80 | 0.23 | 0.8 |
| CF1.5-1 | 1500 | 60 | 40 | 20 | 80 | 0.28 | 1 |
| CF2-1 | 2000 | 150 | 120 | 30 | 195 | 1 | 4.5 |
| CF2-2 | 1950 | 150 | 120 | 65 | 200 | 1 | 4.5 |
| CF2-3 | 1950 | 150 | 110 | 65 | 200 | 1 | 5 |
| CF3-1 | 3000 | 150 | 120 | 30 | 195 | 1.4 | 6.5 |
| CF3-2 | 3000 | 150 | 120 | 200 | 210 | 1.4 | 6.5 |
| CF3-3 | 3000 | 150 | 110 | 30 | 195 | 1.4 | 7.5 |

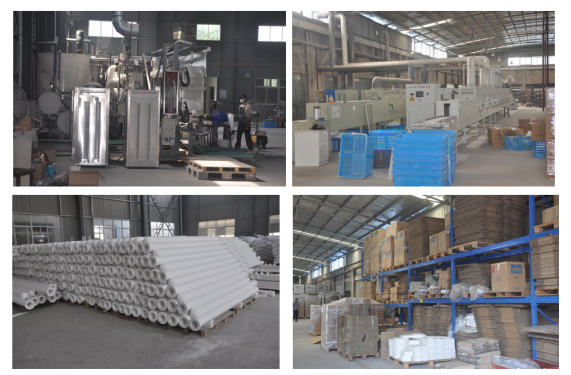

Production
