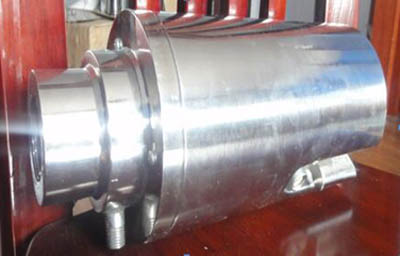

SC-H Series color comparator pyrometer different from traditional pyrometer, which using two optical wavelengths to measure the temperature, and then via the temperature ratio gives temperature scale.
This method not only can eliminate the obstruction from smoke, steam, dust of surrounding environment, but also eliminate the obstruction from different emissivity of different targets.
Therefore, the color comparator pyrometer more able to correctly measure the real temperature of the targets.
Applied in Furnace, Metallurgy, Flat glass , Refractory material, Reheat furnace , etc.
Feature
With optical sighting and adjustable focus function;
Superior optical ratio fit for high temperature measurement of small targets;
The Thermo Jacket enclosure in ambient temperatures up to 300℃;
Equipped with LCD temperature display, scene emissivity adjustable ;
Optional automatic protection device.
Specification
| Temperature Range | 400－1200℃、600－1400℃、700－1700℃、900－2700℃（can be extended） |
| Spectral Range | 0.85-1.08um，1.4-1.7um |
| Distance Coefficient | 100:1, 200:1, 300:1 |
| System Accuracy | ±0.5％or±2（Max）（Ambient temperature: 23±5℃） Repeatability accuracy ±0.1％(calibration value)（Ambient temperature:23±5℃） |
| Response Time | <5ms（95％） |
| Emissivity | 0.100－1.099 |
