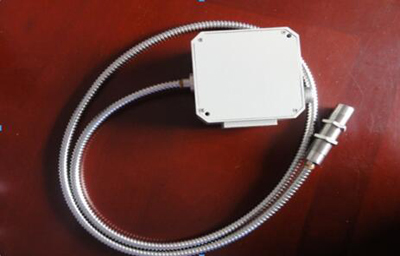

SC-X Series infrared pyrometer with the advantages of accurate laser sighting , LCD displaying current state.
Designed for easy integration can be easily alignment measured goals and instruct the best measurement distance. It provide users with easy to use , highly reliable measurements.
Applied in Printing , Paper making , lamination , Drying , Processed food , Textile , Pharmaceutical , Metallurgy, Furnace , Flat glass , Refractory material, Reheat furnace, etc.
Feature
Spot instruct optimal measurement position.
Solid and durable sensing head meet IP65（NEMA4）standard.
Background radiation compensation.
4-20mA and selectable digital analog output.
Specification
| Temperature Range | 400-1200℃,600-1400℃,700-1700℃,900-2700℃(section) |
| Measurement Accuracy | ±0.5% (calibration value） |
| Repeatability Accuracy | ±0.1%（calibration value） |
| Response Time | 10ms |
| Distance Coefficient | 70:1 ( energy :90%） |

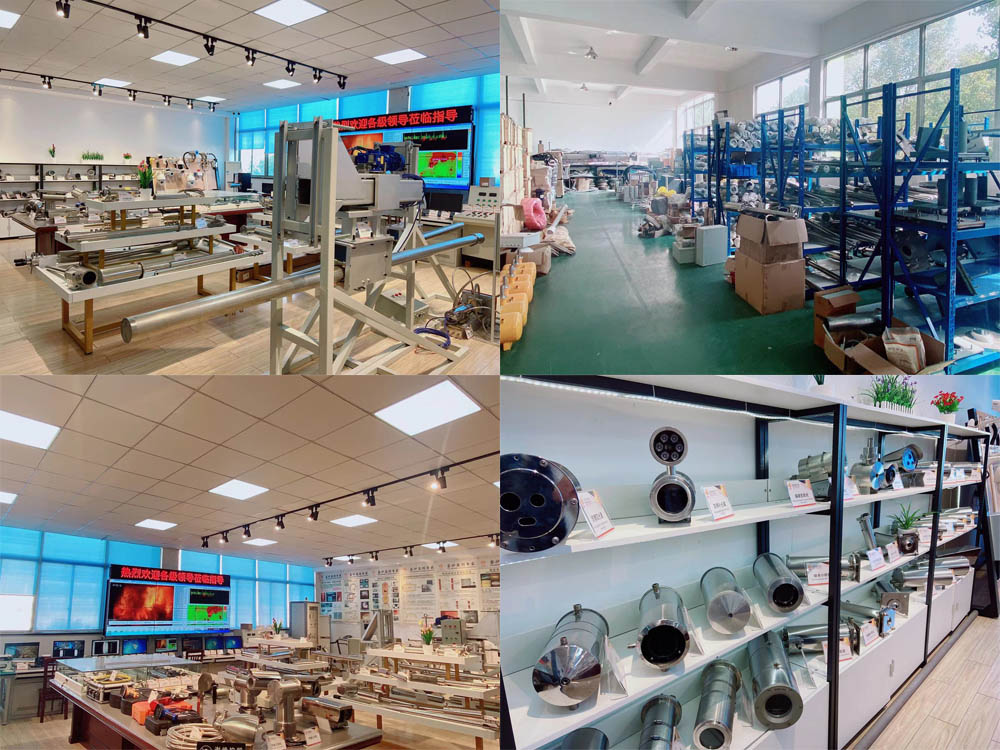

Production
