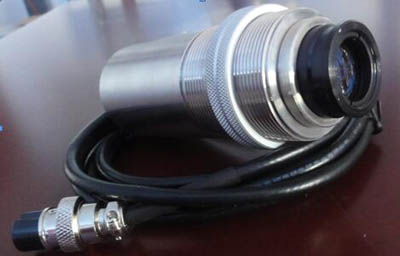

SC-X Series infrared pyrometer with the advantages of accurate laser sighting , LCD displaying current state.
Designed for easy integration can be easily alignment measured goals and instruct the best measurement distance. It provide users with easy to use , highly reliable measurements.
Applied in Printing , Paper making , lamination , Drying , Processed food , Textile , Pharmaceutical , Metallurgy, Furnace , Flat glass , Refractory material, Reheat furnace, etc.
Feature
Spot instruct optimal measurement position.
Solid and durable sensing head meet IP65（NEMA4）standard.
Equipped with LCD temperature display, scene emissivity adjustable.
4-20mA and selectable digital analog output.
Specification
| Temperature Range | 400－1200℃、600－1400℃、700－1700℃、900－2700℃（can be extended） |
| Spectral Range | 8-14um，1.6um，1um |
| Distance Coefficient | 75:1，150:1，200:1 |
| System Accuracy | ±1％ or±2℃（max）（ambit temperature:23±5℃） |
| Repeatability Accuracy | ±0.5％or±1℃（max）（ambit temperature：23±5℃） |
| Temperature Resolution | 0.5℃ |
| Response Time | <5ms（95％） |
| Emissivity | 0.100－1.099 step length : 0.001 |
