"Intelligence" recognition
For varieties with complex structures (such as twill, jacquard, satin, etc.), intelligent recognition algorithms are available.
"Intelligence" movement
The servo motor continuously and sensitively adjusts the weft, and the motion control system intelligently detects and processes the deviation of the weft adjustment motion (such as the oscillation of the weft adjustment result), so that the system has wider adaptability.
"Smart" service
Remote intelligent service platform guarantee. Through the Internet remote service platform, provide customer equipment with intelligent fault reminders, remote problem processing, software upgrades, etc.
"High" accuracy
High speed digital camera and advanced image processing technology are adopted to ensure high detection accuracy.
Specification
| Applicable speed | 1-150 m/min |
| Check weft density | 3-450 pieces/inch |
| Roll surface length | Narrow width: 1800mm~2600mm ，Wide width: 2800mm~3800mm |
| Diameter of stainless steel cloth guide roller | Narrow width: 100mm in middle ，width: d125mm |
| Detection angle range | ± 5~± 45 degrees |
| check the accuracy | ± 0.05 degrees |
| interface | 15 inch industrial touch screen |
| Installed capacity of power supply | Three phase AC380V 50HZ 38KVA |
| Overall quality | 1700KG~2100KG |
| Environmental indicators | Temperature: - 10~+50℃ |
| Remote service | With remote service function, remote intelligent service platform can be connected through the Internet |
Production
Qualification

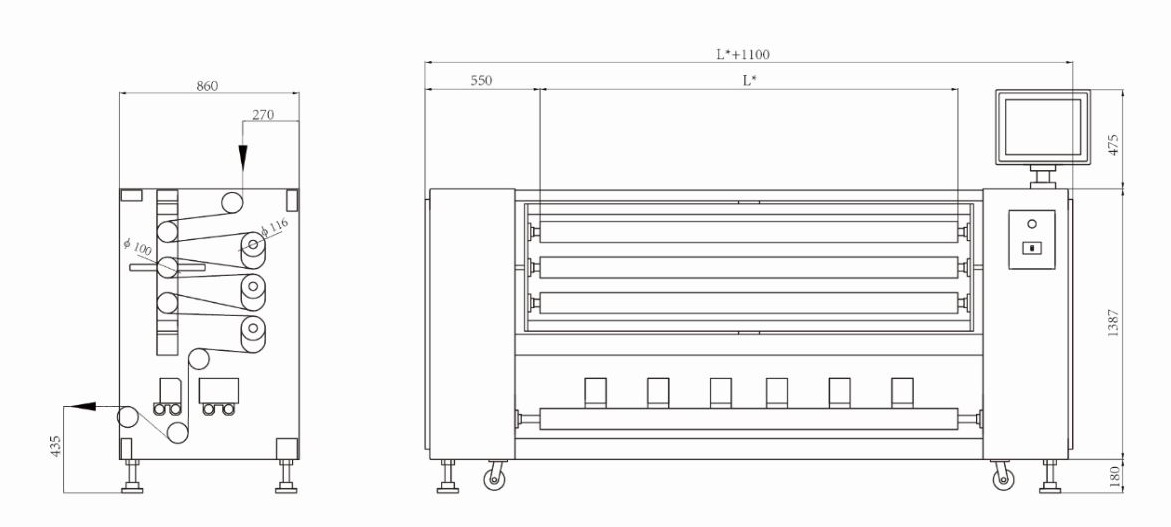

Diagram
