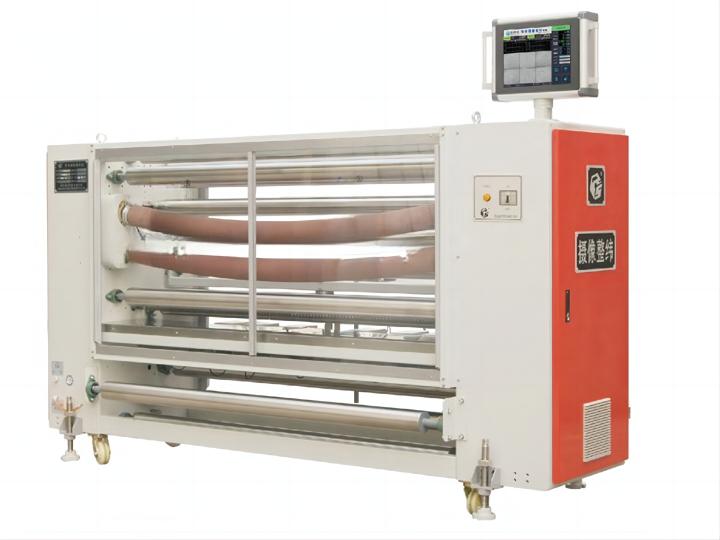

With the combination of traditional frequency conversion motion control technology and advanced image intelligent recognition technology, the weft straightening machine has a wide range of fabric varieties and high recognition accuracy, thus greatly improving the performance of the weft straightening machine.
Specification
| Applicable speed | 1-150 m/min |
| Check weft density | 3-450 pieces/inch |
| Roll surface length | Narrow width: 1800mm~2600mm ，Wide width: 2800mm~3800mm |
| Diameter of stainless steel cloth guide roller | Narrow width: 100mm in middle ，width: d125mm |
| Detection angle range | ± 5~± 45 degrees |
| check the accuracy | ± 0.05 degrees |
| interface | 15 inch industrial touch screen |
| Installed capacity of power supply | Three phase AC380V 50HZ 38KVA |
| Overall quality | 1700KG~2100KG |
| Environmental indicators | Temperature: - 10~+50℃ |
| Remote service | With remote service function, remote intelligent service platform can be connected through the Internet |
Production
Qualification

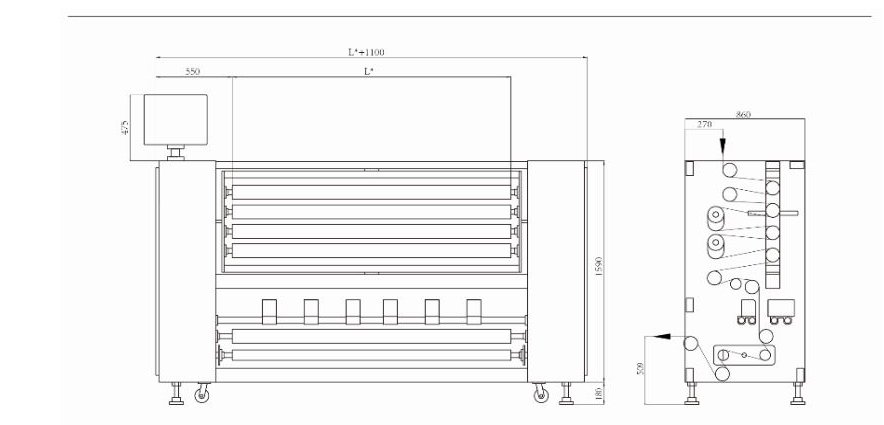

Diagram
