Product parameters:
Rated voltage :220V 50/60Hz
Rated power :40/50/60/80
/100/120W
Power factor :0.95CRI:≥80
Explosion-proof class :EXdembIICT6
Corrosion/protection grade :WF2/IP66
Light source :LED luminous efficiency :≥140lm/w
Color temperature :3000~6000K
Ambient temperature :-20℃~+50℃
Size (mm):40~60W:Φ215*232
80 ~ 100 w Φ 262 * 252
100 ~ 120 w Φ 295 * 275
Product features:
Suitable for explosion prevention in petroleum, petrochemical, mining, metallurgy, electric power, ships and other factories
Lighting places such as: mine roadway, platform, gallery, cable tunnel, pump house, etc

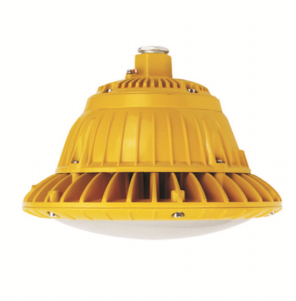

The lamp shell is made of high-strength aluminum alloy die-casting, and the surface is uniformly sprayed to resist
Strong impact, corrosion resistance. Thickened explosion-proof glass, good light transmission, light source cavity
And power cavity isolation design, control temperature rise, effectively extend the service life of the lamp.
Imported LED light source, high luminous efficiency, high color rendering, low energy consumption, life up to 100000
Nano reflector design, anti-glare, uniform light, large irradiation range.
Intelligent IC constant current drive, no interference, wide voltage float, overvoltage protection.
Installation methods: ceiling, wall type, bending rod, guardrail, vertical rod and other installation methods.
Specification
