This product has the following advantages
A. Short process flow;
B. High production efficiency;
C. Low pollution;
D. Saving energy and space;
E. High degree of automation, convenient operation, material waste consumption rate: up to 5%.
F. The whole process from loading to cloth output is automatically controlled. Adopt AC frequency conversion technology (more energy-saving) and touch screen control;
G. The technology has the advantages of reasonable structure, space saving, high working performance, low production consumption, convenient operation and less operation trouble.
H. PLC controlled by touch screen.
Specification
| Power (W) | 500kw |
| Weight | 70000-130000kg |
| Size (L * W * H) | 30000×20000×11000 |
| Condition | new function |
| Automatic rating | automatic |
| Origin | Jiangsu, China (mainland) |
| Brand | Yukra |
| Voltage | 380V |
| Certification | CE certificate |
| width | 1.6m, 2.4m, 3.2m |
| Process | spunbonded |
| Raw material | polypropylene chip |
| Melt index | 28-40 g/10 min |
| Melting point | 162 - 165 ° C |
| Density | 0.90-0.91 g/cm3 |
| Fabric weight range | 10-180 g/m2 |
| Maximum winding diameter | 1500 mm |
| Monofilament fiber number | 1.8~2.0 points |
| After-sales service | engineers can repair machinery overseas |
| Guarantee | 1 year |
| Supply capacity | 20 sets/set per year |
| Packaging requirements | large pieces are wrapped with several rings of film, small pieces are packed in wooden cases, and each package is numbered and packaged for easy loading |
| Port | Shanghai |
| Lead time | 120 working days |

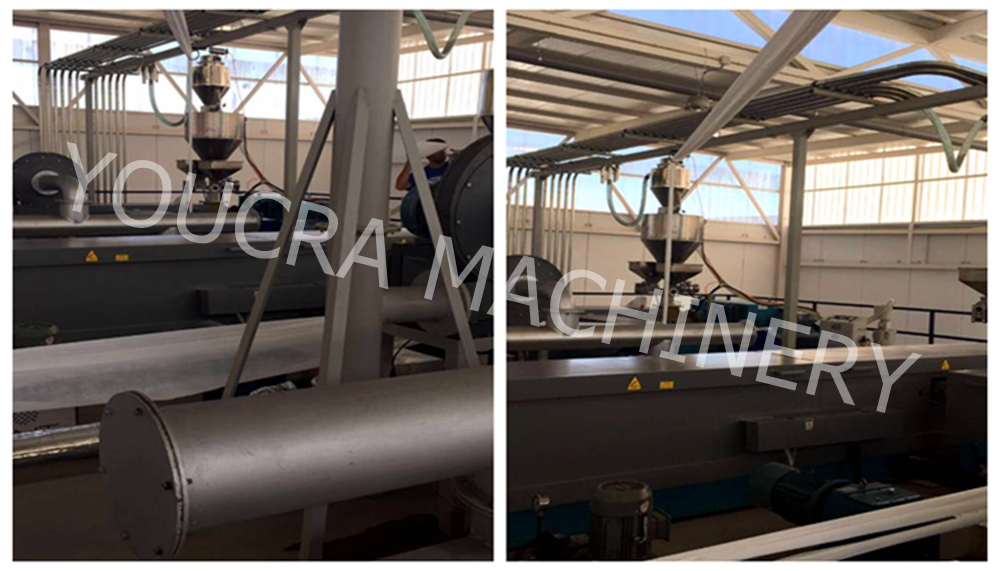

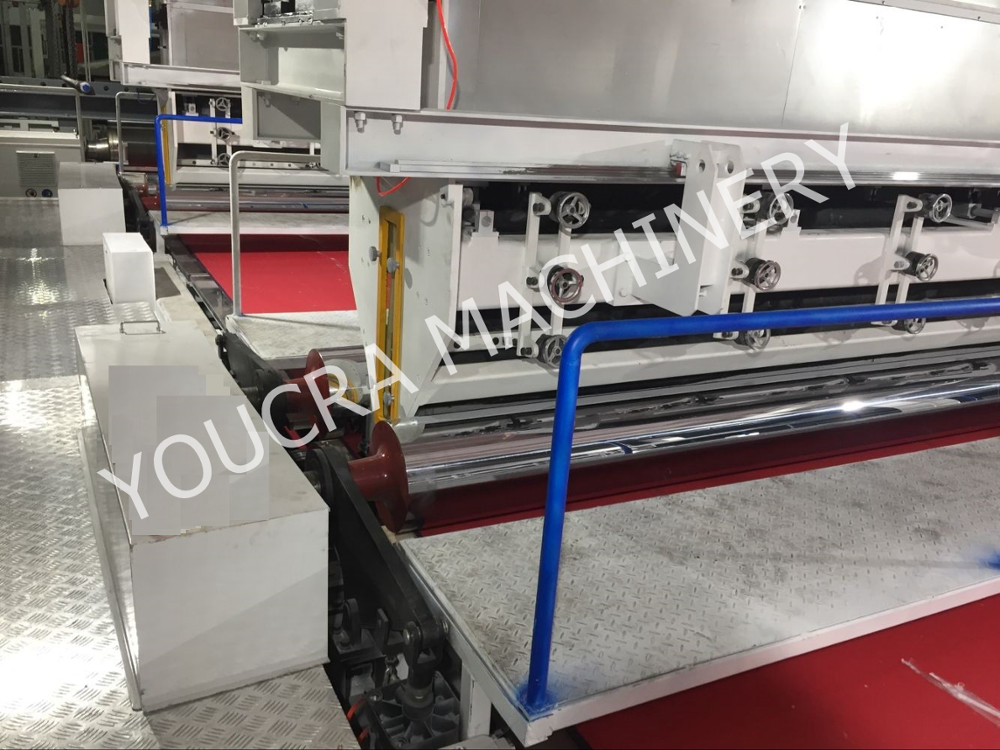

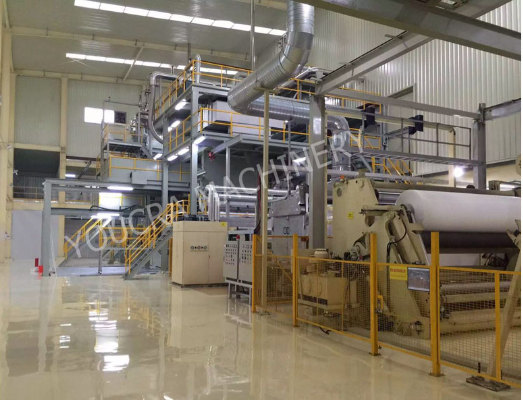

Production
