The company has independent manufacturing equipment for hydraulic cylinders with the same quality and superior price, and plans to customize hydraulic cylinders to meet customers' personalized customization needs. Please contact us if necessary.
Specification
| Model | Al | A2 | Bl | B2 | Cl | C2 | D | E | F |
| 3TG-E130X2850 | 320 | 195 | 340 | 470 | 60 | 6() | Gl〃 | 325 | 1273 |
| 3TG-F130X3200 | 320 | 195 | 340 | 470 | 60 | 60 | Gl〃 | 325 | 1383 |
| 3TG-F130X3400 | 320 | 195 | 340 | 470 | 60 | 60 | Gl〃 | 325 | 1463 |
| 3TG-F130X3600 | 320 | 195 | 340 | 470 | 60 | 60 | Gl〃 | 325 | 1513 |
| 3TG-F130X3830 | 320 | 195 | 340 | 470 | 60 | 60 | Gl〃 | 325 | 1588 |
| 4TG-F152X3400 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1170 |
| 4TG-F152X3830 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1270 |
| 4TG-E152X4280 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1380 |
| 4TG-F152X4600 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl" | 325 | 1460 |
| 4TG-F152X4800 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1510 |
| 4TG-F152X5100 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1585 |
| 4TG-F175X4280 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1380 |
| 4TG-F175X4600 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1460 |
| 4TG-F175X4800 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1510 |
| 4TG-F175X5100 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1585 |
| 4TG-F175X5390 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1660 |
| 4TG-F175X5700 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1735 |
| 4TG-F175X6180 | 375 | 245 | 340 | 470 | 60/65 | 60/65 | Gl〃 | 325 | 1855 |
| 4TG-F200X4600 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1460 |
| 4TG-F200X4800 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1510 |
| 4TG-F200X5100 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1585 |
| 4TG-F200X5390 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1660 |
| 4TG-F200X5700 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1735 |
| 4TG-F200X6180 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1855 |
| 5TG-F200X5390 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1388 |
| 5TG-F200X5700 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1460 |
| 5TG-F200X6000 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1510 |
| 5TG-F200X6350 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1585 |
| 5TG-F200X6700 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1660 |
| 5TG-F200X7120 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1735 |
| 5TG-F200X7700 | 410 | 270 | 360 | 490 | 60/65 | 60/65 | Gl〃 | 325 | 1855 |

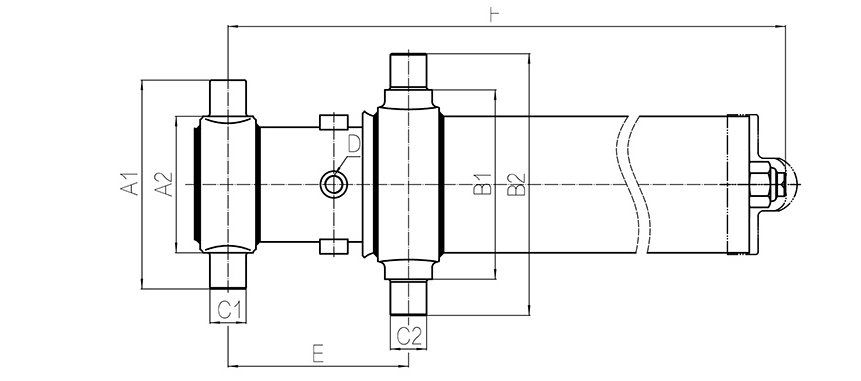

Diagram
