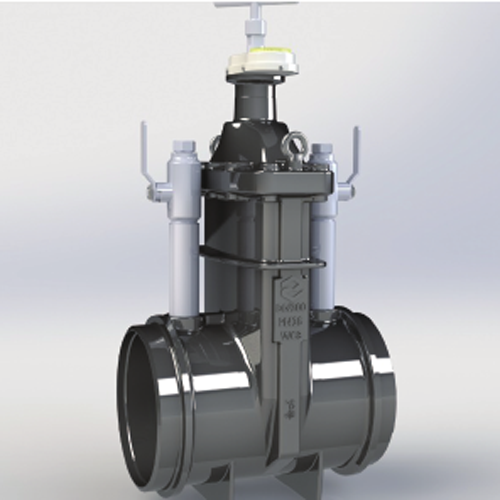

Flat type valve chamber gate slot structure design, covering all gate design, online replace the sealing ring structure, triple seal structure design, embedded nut design, underground buried anti-theft lock design, rubber sealing structure design, the seat of the multistage seal structure, the seat of the auxiliary sealing device, anti-static structure, stem fly out of the structure design, fire prevention structure design, Automatic pressure relief structure design, heavy anticorrosion technology.
OEM & ODM service.
Sample available.
MOQ: 500 / each model
Specification
| Model | Z45X, Z65X, Z69X, PEZ69X, etc. |
| Shell Material | WCB, QT450, etc. |
| Drive Mode | handwheel, electric, pneumatic, gas-liquid linkage, etc. |
| Operating Temperature | -29-150°C |
| Applicable Medium | water, natural gas, oil, etc. |
| Design Standard | CJ/T514, EN13774, etc. |
| Length Standard | ASME B16.10, GB/T12221 |
| Flange / Welding End Standard | ASME B16.5, HG20592, GB/T9113, GB/T9124, ASMEB31.4/31.8, etc. |
| Diameter Range | DN50-DN600, NPS2''-NPS24'' |
| Pressure Range | PN4, PN16, PN25, Class150Lb |
| Test Standard | GB/T26480, API598 EN12266-1 |

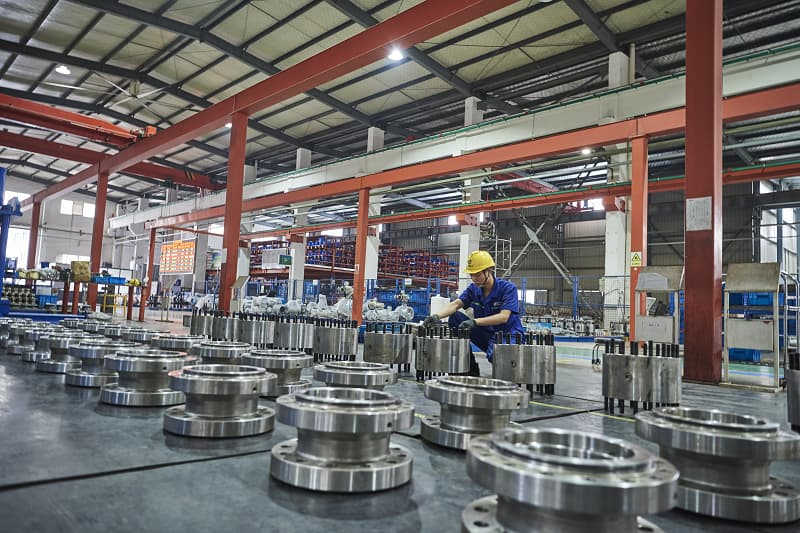

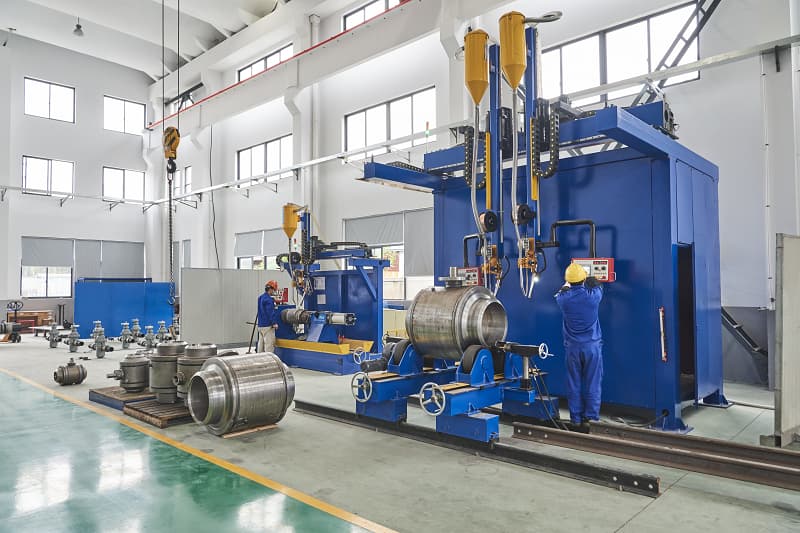

Production
