Transparent polyester tape is mainly used for
gluing, compounding, printing, packaging,
silicon coating, envelope window film, insulation and silk screen flexible line printing,
display screen saver, printing of high transparent packaging materials, insulation and temperature resistant film, which has a certain
flexible insulation material layer and conductive materials, coiled materials, sheets, good
printing adaptability, and high adhesion with
various inks.

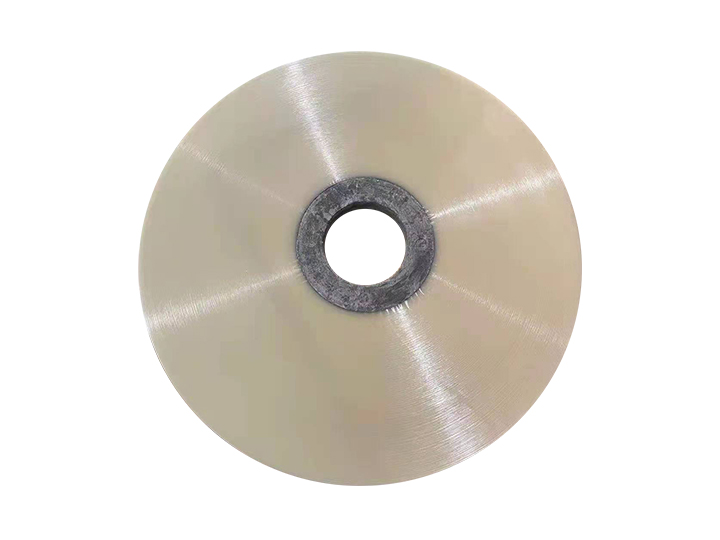

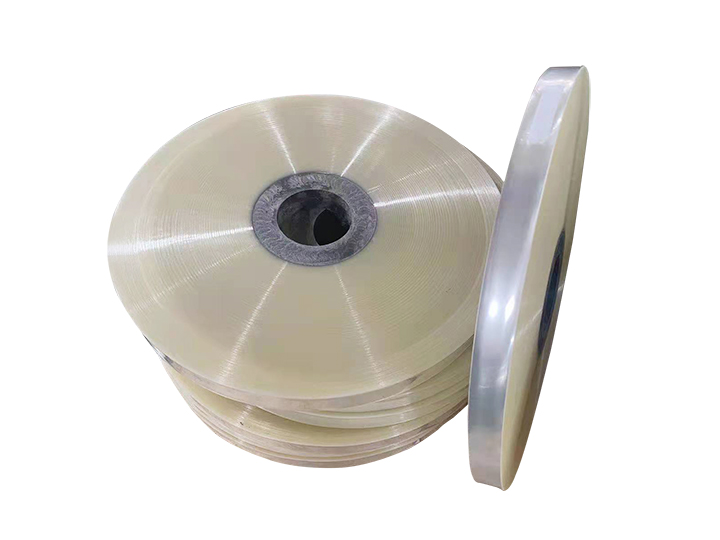

Features: Transparent polyester tape is made
of PET polyester film by mechanical cutting. It
has high mechanical strength, high temperature resistance, low temperature resistance
and good conductive material.
The main thickness of polyester tape is
0.012mm, 0.02mm, 0.025mm, 0.03mm,
0.036mm, 0.038mm, 0.05mm, 0.075mm,
0.1mm, 0.125mm, 0.175mm, 0.188mm,
0.25mm, 0.35mm, etc.
Specification
| batch | 1 volume | Supplier/Origin | Yixing Huafei | ||
| Inspection order number | / | Production batch number/date | HF20210830-30 | ||
| Sampling Number/Incoming Material Number | 1/1 | Incoming date | 2021.08.30 | ||
| Test standard (basis): GB13958-96 standard compilation | |||||
| Test items | Standards and Indicators | test result | |||
| Thickness (mm) | 0.03 (±0.004) | 0.03 | |||
| Width (mm) | ±0.3 | 30 | |||
| Die inner diameter (mm) | 83 | ||||
| Outer diameter (mm) | ≥350 | 360 | |||
| Density (g/m 3 ) | ≤1.40 | 1.38 | |||
| Tensile strength (N/mm) | ≥150 | 170 | |||
| Elongation(%) | ≥80 | 85 | |||
| melting point | ≥250 | 251 | |||
| Appearance and surface quality | It should be smooth and flat, free from air bubbles, pinholes and conductive impurities, and the edges should be neat and undamaged | qualified | |||

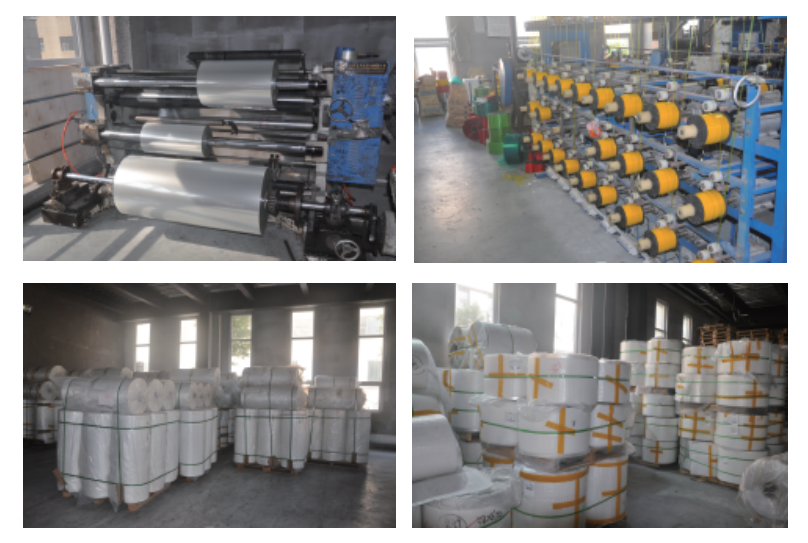

Production
