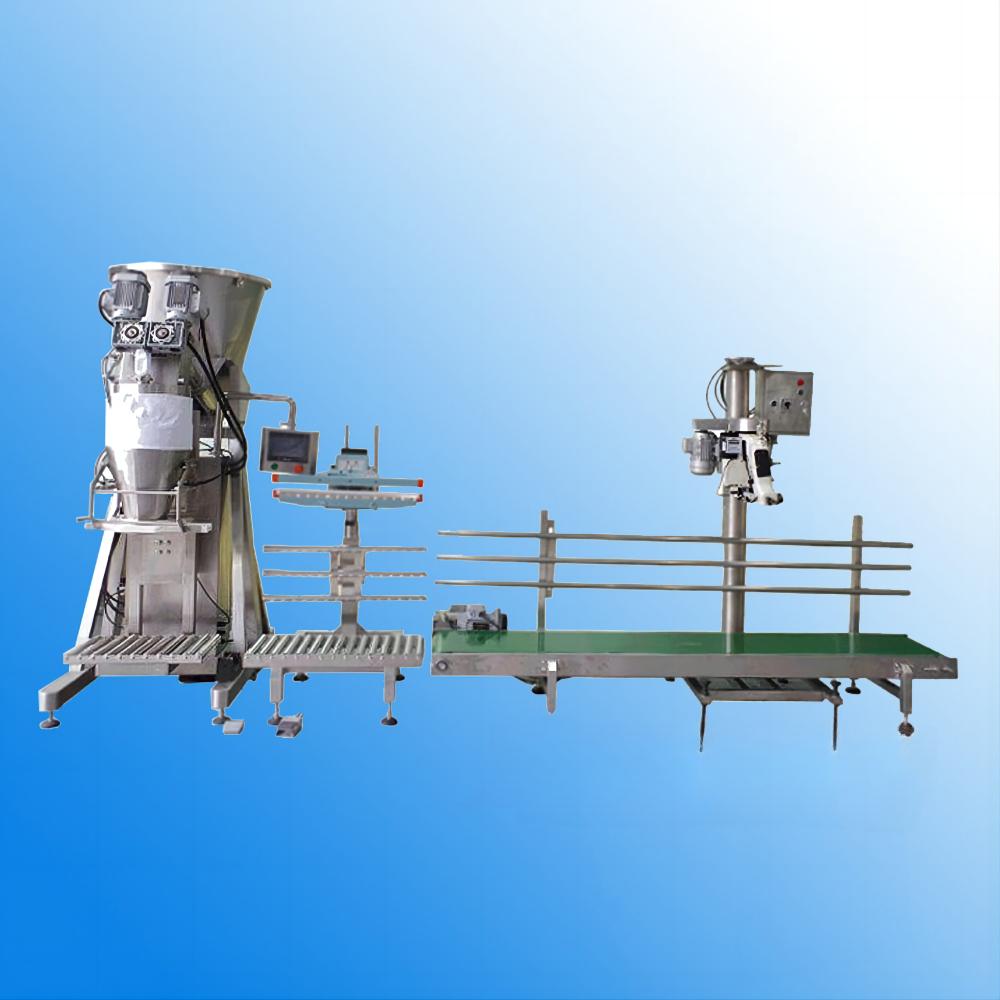

The main components of this series of automatic quantitative packaging scales are: an integrated automatic packaging system consisting of a feeding mechanism, a weighing mechanism, a pneumatic actuator, a bag clamping mechanism, a dust removal mechanism, an electric control part, etc. The system equipment is usually used for fast and constant open bag quantitative weighing and packaging of solid granular materials and powder materials, such as rice, beans, milk powder, feed, metal powder, plastic particles and various chemical raw materials.
Specification
| Model | BD-C1 | BD-C2 | BD-C3 |
| Measurement method | Gross weight weighing | Weighing by weighing box | Double weighing box weighing |
| Package weight | 5-25kg (increase 10-50kg) | 5-25kg (increase 10-50kg) | 5-25kg (increase 10-50kg) |
| Packaging accuracy | ≤±0.2% | ≤±0.2% | ≤±0.2% |
| Packaging speed | ≥ 3 bags/min ≥ 3 bags per min | ≥ 6 bags/min ≥ 6bags per min | ≥ 12 bags/min ≥ 12bags per min |
| Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Overall power | 2.25kw | 2.5 KW | 3.1 KW |
| Compressed air | 6 kg/cm2 0.2 m3 /min | 6 kg/cm2 0.3 m3 /min | 6 kg/cm2 0.5 m3 /min |
| Operating Weight | 600kg | 8000kg | 1300kg |
| Overall volume | 4500×1500×2500mm | 4800×1500×3000mm | 5300×2000×3800mm |
