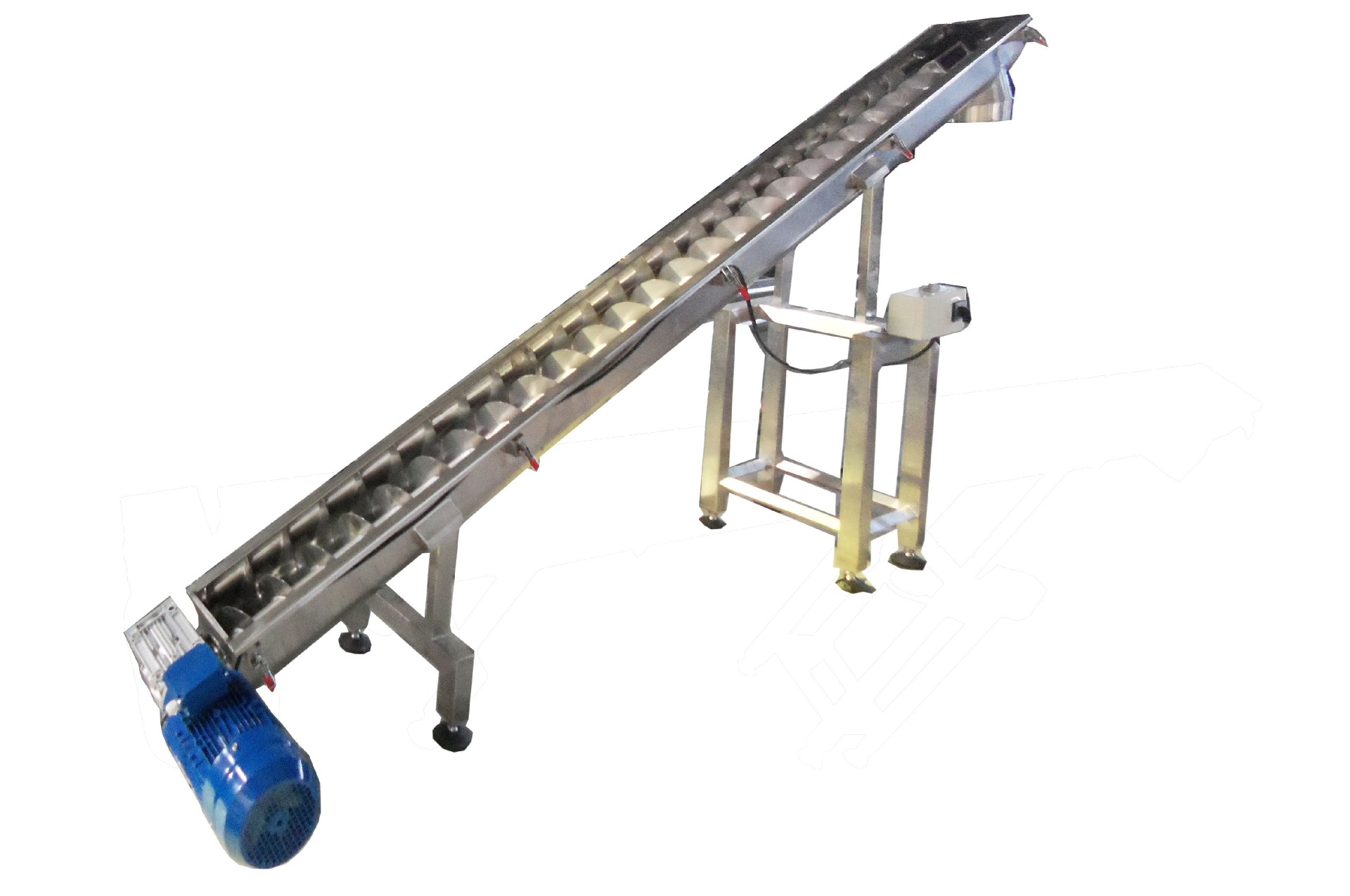

U-type Screw Feeder

Conveying length: 0.8m for general use, 0.4-6m for customization
Conveying capacity: In addition to the above mentioned conveying capacity, other conveying capacities can also be customized
The feeding pipe is a U-shaped groove, on which there is a stainless steel arc cover, which is fastened with a buckle, and the middle is sealed with a sealing strip without powder leakage. Opening the cover can facilitate cleaning.

Specification

ModelUS-1KUS-2KUS-3KUS-5KUS-7KUS-8KUS-12K
Lifting speed1M3/h2M3/h3M3/h5M3/h7M3/h8M3/h12M3/h
U-groove diameterΦ89Φ102Φ114Φ141Φ159Φ168Φ219
Overall power0.4kw0.4kw0.55kw0.7kw0.75kw0.75kw1.1kw
Operating Weight75kg80kg90kg100kg110kg120kg150kg
