1. The hopper is made of food grade polypropylene material, which has beautiful appearance, is not easy to deform, and is resistant to high and low temperatures.

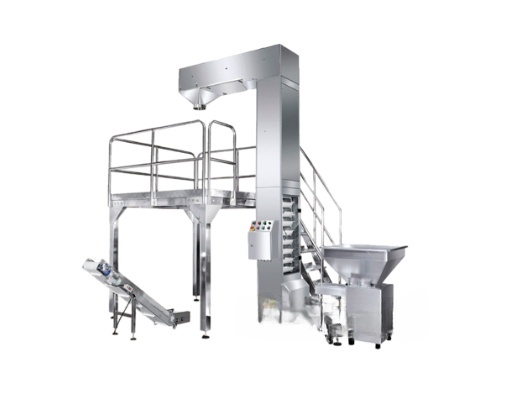

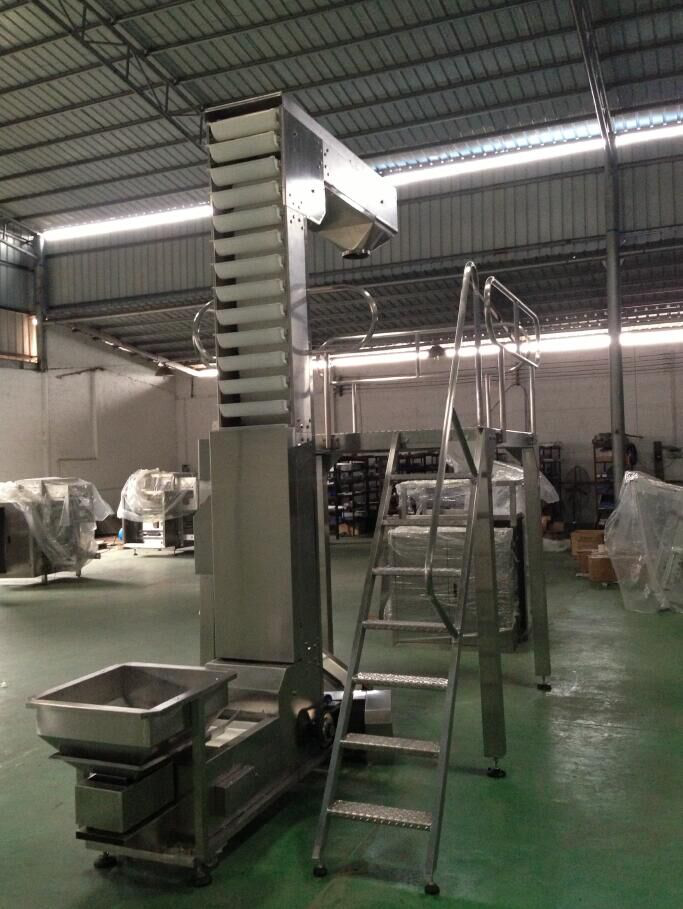

2. The vertical bucket elevator can perfectly realize continuous or intermittent conveying and can be matched with other feeding equipment.
3. The vertical bucket elevator is easy to assemble and disassemble, and the hopper is easy to clean.
Specification
| Machine model | FM-3B3 vertical bucket elevator |
| Hopper capacity | 1.8L |
| Texture of material | #304 stainless steel |
| Throughput | 4-6.5m3/H |
| Machine height | 3296mm |
| Feed length | 863mm |
| Package size | 2050mm(L)*1350mm(W)*980mm(H) |
| Voltage | AC 220V single-phase or AC380V, three-phase. 50Hz |
| Power | 0.75KW |
