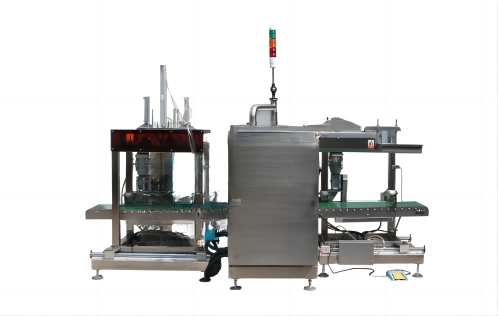

This equipment is mainly designed for the development of battery materials. Its main function is to clean and recycle the residual materials in the sagger, which can be equipped with a set of bowl machine, a bowl stacker, a conveyor, etc. to form the entire automatic assembly line.
Specification
| Model | BJ-04 |
| Vacuum mode | box vacuum type |
| Sealing method | heating wire sealing |
| Sealing length | s+800mm |
| Operating speed | 1-2bao/min (depending on bag specification) |
| Suitable bag type | aluminum film bag, PE bag, plastic bag, etc |
| Power supply | one phase 380V/220V 50-60HZ |
| Overall power | 2.7KW (including vacuum pump) |
| Vacuum degree | S-0.1Mpa adjustable |
| Air pressure | 0.4-0.8Mpa |
| Air consumption | 1m ³/ min |
| Operating Weight | 750Kg |
| Overall volume | 3200mm front × 1630mm side × 2050mm height |
