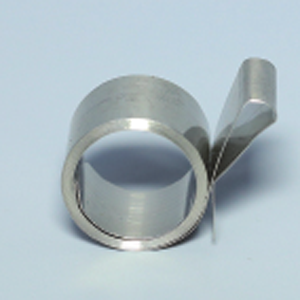

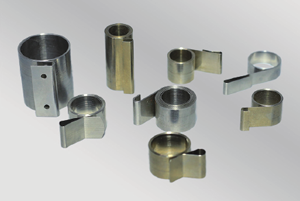

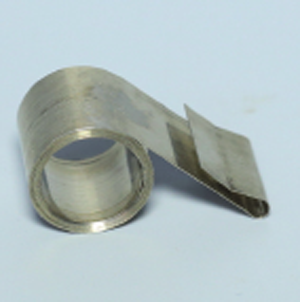

Smooth and burr-free: the surface is smooth and bright, the force is even and not slippery.
Exquisite materials and exquisite workmanship.
The raw material is SUS301 (stainless steel).
Compared with ordinary steel strip, it has excellent high temperature strength.
High hardness, the strength and hardness of steel can be improved by cold deformation processing.
Various specifications, non-standard customization: customized on demand, full specifications.
Sample available.
MOQ: 1000 / each model
Specification
| Size(mm) | Outer Diameter Range(mm) | Load(N) |
| 0.04*25 | 3.8±0.1 | 2.0-2.2 |
| 0.04*3 | 2.7 | 1.9 |
| 0.05*4 | 5.0±0.2 | 2.1 |
| 0.05*4 | 4.8-4.9 | 1.9-2.0 |
| 0.05*2.6 | 3.8±0.1 | 2.0-2.1 |
| 0.05*2.55 | 4 | 1.8-2.0 |
| 0.055*5 | 4.8±0.1 | 2.0-2.2 |
| 0.055*4 | 4.8 | 2.2 |
| 0.06*4 | 5.2-5.3 | 2.6-2.7 |
| 0.06*2.5 | 4 | 2 |
| 0.06*3 | 1.9 | 1.8±0.1 |
| 0.06*4 | 5 | 1.8-2.0 |
| 0.01*4 | 5.8 | 4.2 |
| 0.07*4 | 5.9-6.0 | 3.4 |
| 0.07*4 | 5 | 5.3 |
| 0.07*3 | 5 | 3.5 |
| 0.08*3.5 | 5 | 4.8-4.9 |
| 0.08*3.5 | 6±0.1 | 3.8-4.0 |
| 0.08*3.5 | 5.1-5.2 | 5.0-5.3 |
| 0.08*3.5 | 5.9±0.1 | 3.8-4.0 |
| 0.08*3.2 | 5.8-5.9 | 3.8-4.0 |
| 0.08*2 | 5.0±0.1 | 2.7 |
| 0.08*3.5 | 5.9-6.0 | 3.7-3.8 |
| 0.08*8 | 6.4±0.1 | 8 |
| 0.08*4 | 5.9±0.1 | 4.0-4.5 |
| 0.082*4 | 6 | 3.8 |
| 0.1*9 | 8.6-8.9 | 10.6 |
| 0.1*6 | 6.5 | 10.8 |
| 0.1*6.4 | 6.6-6.7 | 11.2-11.4 |
| 0.1*5.8 | 6.6-6.7 | 10 |
| 0.1*6.4 | 7 | 1.1 |
| 0.063*2.5 | 4.5 | 2 |
| 0.045*1.6 | 3.7±0.1 | 1.1 |
| 0.06*4 | 4.8-4.9 | 3 |
| 0.08*5.4 | 5.4 | 7.4-7.7 |
| 0.06*4 | 4.7-5.0 | 3.3 |
| 0.08*4 | 5.8 | 5.3 |
| 0.056*4 | 4.5 | 2.8 |
| 0.04*1.5 | 3.2-3.3 | 1.5 |
| 0.068*2.5 | 4.3 | 2.8 |

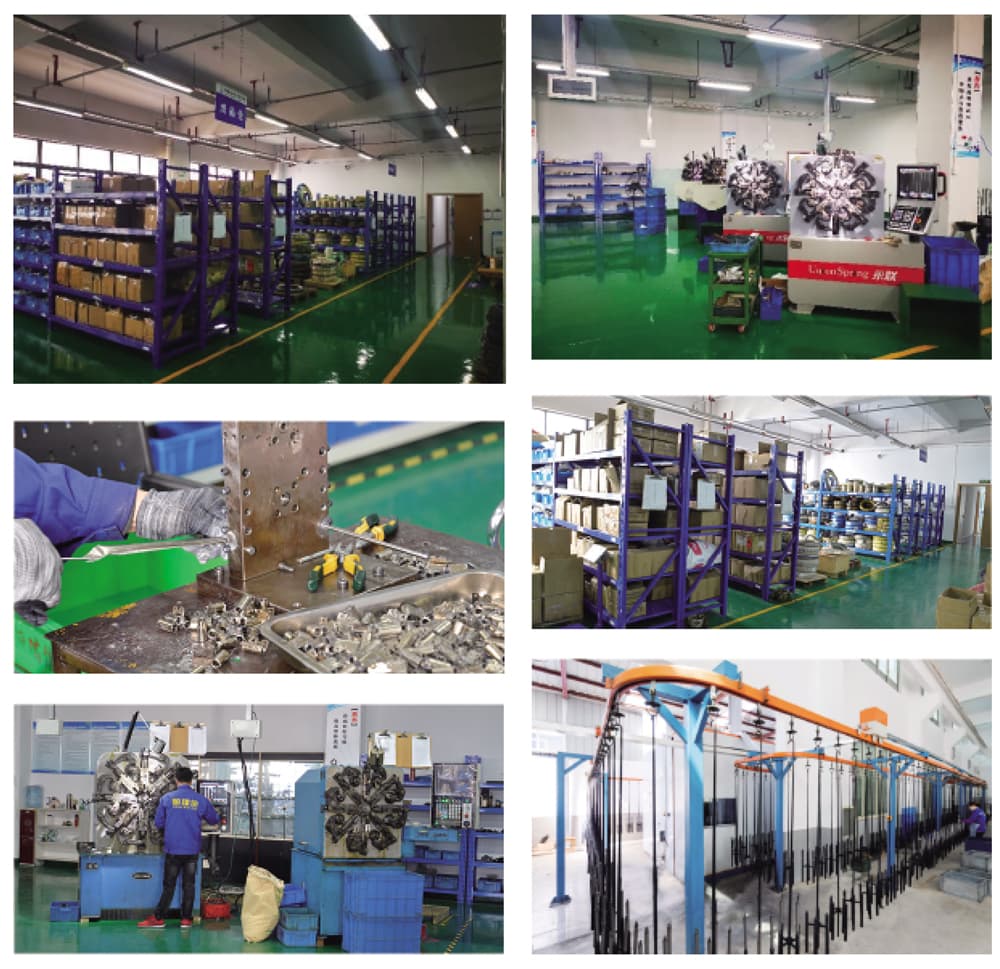

Production
