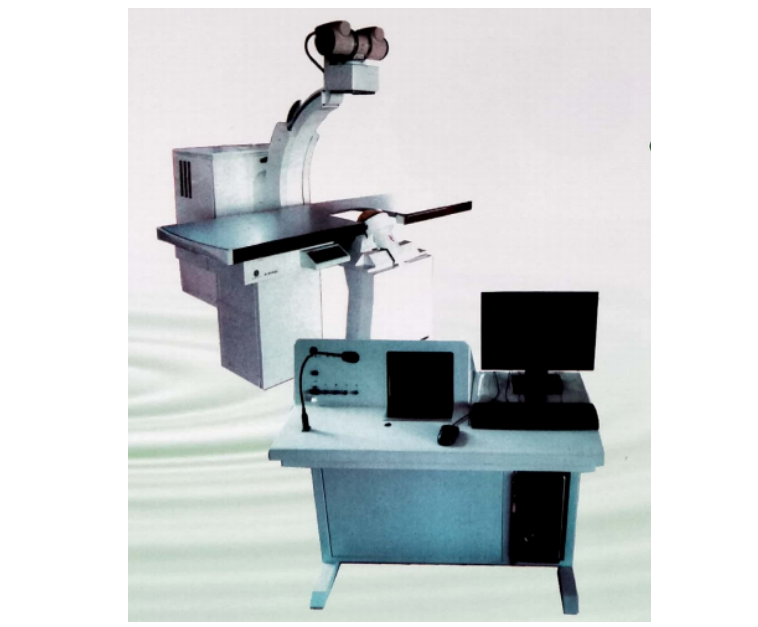

Main performance characteristics
1. Dual localization: Using X-ray cross localization
2. B-Super can be added as an auxiliary positioning device
3. The therapeutic body can move in three dimensions and six directions
4. The computer function of the crusher is powerful, and the operation is convenient, accurate, and stable
5. The image data can be frozen and stored with the image dongjie function. Easy to check
Reading, research, and teaching, providing support for hospital networking
6. X-ray generator system: high-frequency or power frequency optional
7. The continuous energy of crushed stones can be described as
Technical parameters of crusher
X-ray system
Voltage regulation range: 50KV-100KV
Current regulation range: 0.5mA -5mA
Shock wave system:
a) Shock wave voltage regulation range: 9KV-14KV
b) Shock wave triggering control method single time. Continuous shock wave generation
The working water for the generator is filtered self prepared water.
The triggering method of shock waves
a) Manual triggering
b) Automatic transmission
The material of the water bag should be medical latex.
Peak sound pressure: The compression peak is 20~50MPa
Peak expansion pressure ≤ 5MPa,
Pressure pulse width pulse width s1 μ
Pressure pulse rise time front ≤ 0.5 μ
Focusing body size and direction S t7mm
Axial direction: S+12.5mm,
The distance between the focal point and the generator end face is 2110mm,
The deviation between focus and target is 3mm
The minimum displacement of the positioning device should not exceed 1mm
The crusher should have a water system control device with water inlet. row
Water and Qigong energy.
X-ray machine C-arm swing angle: 0 "-30
X machine tool surface movement range: X direction (longitudinal)
Exercise: 2z100mm
Direction lateral movement: 100mm,
Work direction (lifting) movement: The bed surface lifting stroke is 2 160mm, and the bed
The distance from the focus of the crushed stone to the bed surface at the lowest position is 2
115mm
