【Product Overview 】

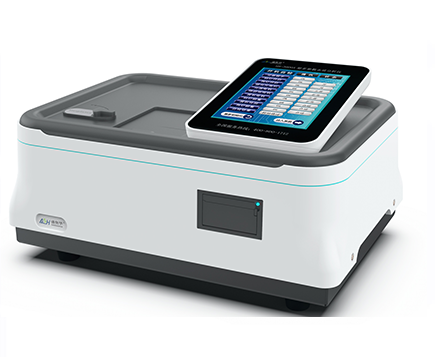

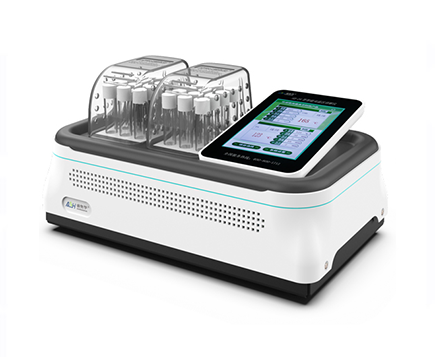

The SH-3900A multi-parameter water quality analysis kit series is the flagship complete set of products launched by Shengaohua Technology. The water quality analyzer adopts imported optical devices and advanced structural design. It uses 360°rotation and 4-cell automatic detection of two colorimetric methods, which effectively enhances data accuracy and stability. It can also be equipped with Shengaohua cloud data service center to realize remote real-time viewing, editing, management, comprehensive analysis and sharing of detection data. The OS operating system makes the human-computer interaction interface powerful; the matching full-touch digestion instrument has accurate temperature control and supports menu-based operations. The temperature settings of the AB heating temperature zone module can be switched at will, which greatly improves the batch digestion of various indicators of the tested water samples.

【Product Standard 】

Conforms to the national standard: GB/T 12519-2010 General Technical Conditions for Analytical Instruments.

The digestion instrument is designed according to the closed reflux method of NIEA W517.52B and USEPA410.4.

【Field of application 】

This product is widely used in laboratory water quality analysis in the fields of industry, municipal, environmental supervision, teaching, hospitals, steel, rivers, etc.; such as universities and research institutes, sewage treatment plants, third-party testing companies, sewage treatment engineering companies; especially in biopharmaceuticals, metallurgical forging, paper printing and dyeing, petrochemicals, leather electroplating, food and dairy industries.

【Features 】

◆ Display interface: 8-inch color touch-screen liquid crystal display, Chinese menu human-computer interaction, data direct reading;

◇ Instrument light source: imported light source, stable and reliable, automatic opening and closing, prolonging the service life;

◆ Testing method: Support two measurement methods of colorimetric tube 360°rotation colorimetry and 4-cell cuvette automatic colorimetry;

◇ Project parameters: support all water quality routine projects and customizable expansion projects;

◆ Curve calling: Classified standard curves, simple and intuitive, support customer-defined and edited curves;

◇ Curve calibration: with one-key calibration function of standard sample;

◆ Data editing: the measurement data can be edited and saved in real time, which is convenient for customers to sort out the test results;

◇ Instrument calibration: automatic calibration and preheating at startup;

◆ Data platform: supports the Internet of Things function, and uploads data to Shengao Huayun Data Service Center in real time, which is convenient for customers' daily management and analysis, and provides data support for the smooth operation of sewage treatment;

◇ Optical structure: It adopts concave blazed holographic grating, which has excellent performance and can switch to any wavelength within 3 seconds;

◆ Field expansion: support photometer function, which can realize photometric measurement and full wavelength scanning function;

◇ Software upgrade: remote upgrade of software version can be realized;

◆ Heat dissipation method: optimized structure, equipped with a large air volume and silent fan to cool down efficiently and prolong the service life of the instrument;

◇ Process optimization: supporting special detection reagents and accessories, reducing customer operation steps, simple and safe;

【Technical parameters 】

【Measurement Index 】
