【Product Introduction】

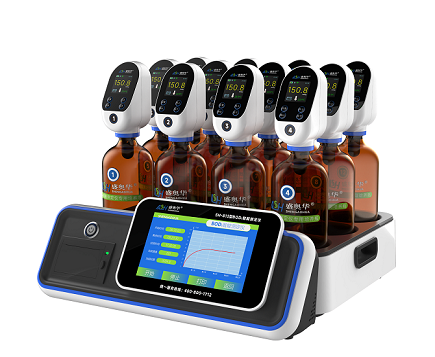

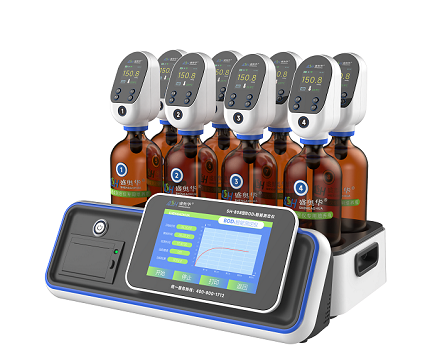

This product is one of the upgrade projects launched by Shengaohua Technology this year. The instrument is designed in accordance with the national standard "HJ 505-2009 5-day culture method", uses the principle of mercury-free differential pressure method to measure the BOD value in water, and uses imported sensors to ensure data Reliable and accurate. The whole machine has an integrated mold design, with distinct functions and stylish appearance. It is widely used in monitoring water quality in industrial sewage, domestic wastewater, environmental engineering, university scientific research, agricultural projects and other fields.

【Working Principle】

This product simulates the natural biodegradation process. The CO2 generated by the organic matter consuming oxygen in the culture bottle is absorbed by the hydroxide in the sealed cup. The pressure changes generated by the degradation process are monitored by sensors. A correlation is established between biochemical oxygen demand (BOD) and gas pressure to accurately measure BOD and display the results in real time.

【Features】

◆Adopts 7-inch touch main screen and 1.5-inch full-color secondary screen display, multi-screen linkage, supports automatic screen suspension and one-key wake-up function

◇Each culture bottle can be operated, run and display results independently at any time. It has a built-in large-capacity lithium battery and can be charged independently or simultaneously.

◆Adopt an intelligent control system to continuously collect, analyze and automatically record data. The training process does not require special personnel to be on duty and the entire process is completed automatically.

◇Mercury-free differential pressure method, the experimental process is safe and reliable, and the measurement results are highly accurate

◆The measurement results do not need to be converted, the BOD concentration is directly displayed, and the test results are automatically printed.

◇Wide measuring range, built-in 10 segmented measuring ranges, users can choose to call them by themselves

◆Customized parameters are reserved and can be calibrated according to needs

◇Automatically generate color data maps, making the detection process more intuitive and clear

◆Automatically record measurement data to facilitate real-time viewing of current and historical data

◇Wireless data summary, historical data and real-time graphs can be viewed on the large screen

◆The measurement cycle and delay time are adjustable, and users can make adjustments according to actual conditions

【Technical Parameters】
