Winder

 This model is equipped with an adjustable tension automatic control system, automatic roll changing function of length and roll diameter, and locking function of unloading roll.

  It can be equipped with an online slitting system and an online slitting system that can realize automatic knife arrangement, an online edge suction system or an independent edge suction system, and ancillary devices such as online weighing and measuring.

  The width can be customized from 1000mm to 4500mm, and the production speed is 40 meters to 600 meters.

  The width of the inner layer and the outer layer of the winding product depends on the diameter of the spunlace cloth product, and the change in width is not more than 1.5%.

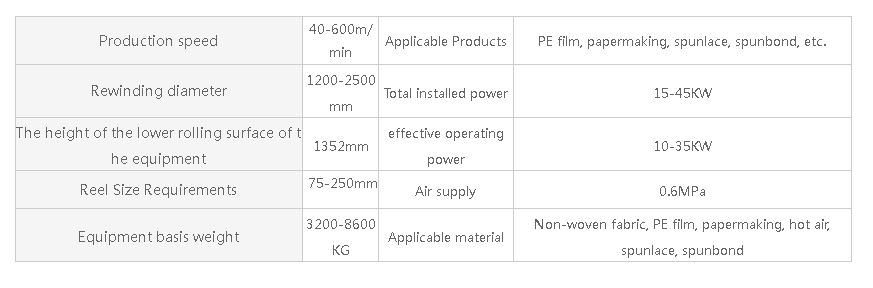

Specification



Winder
Go detail
Winding system
Go detail
