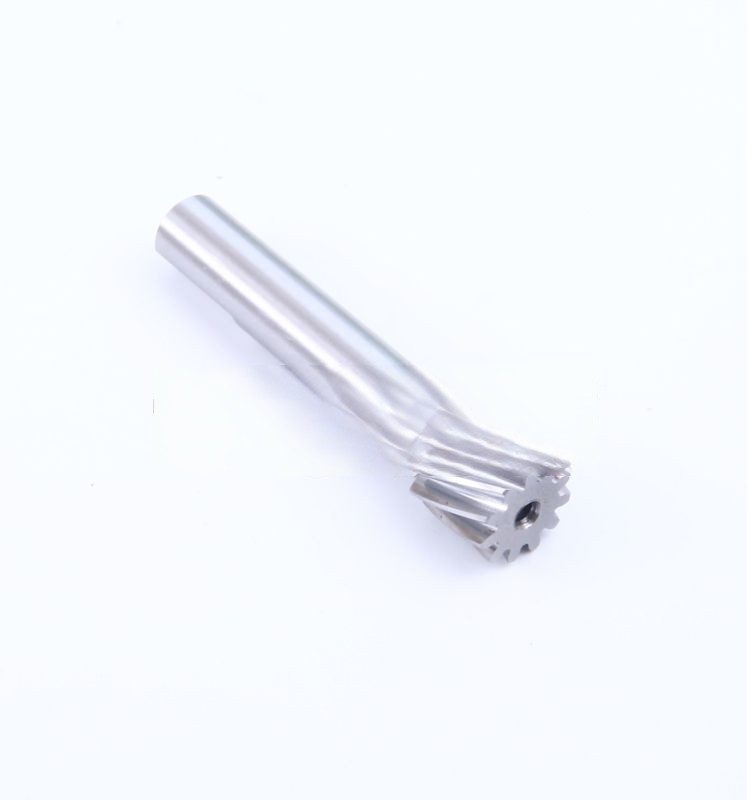

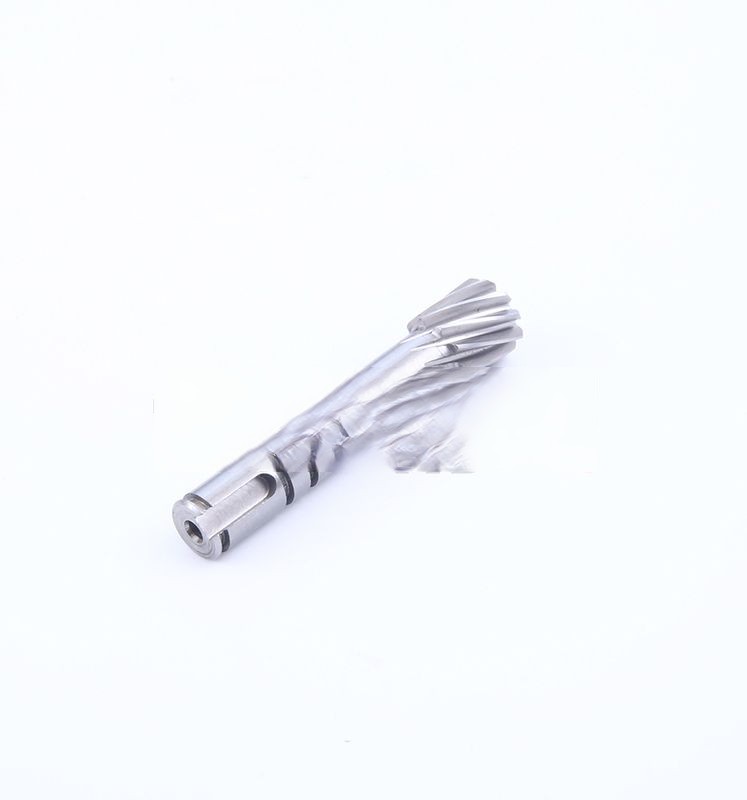

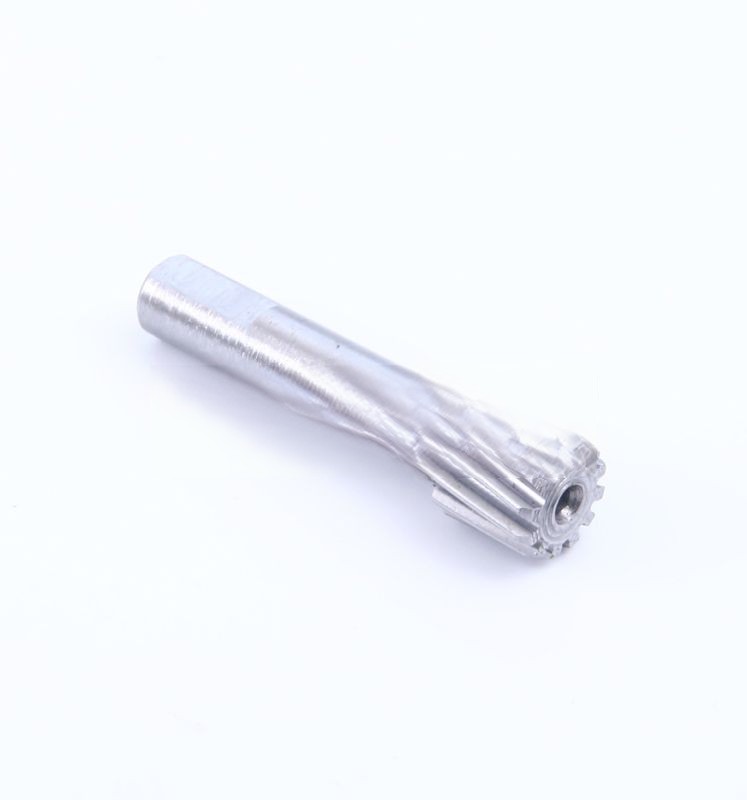

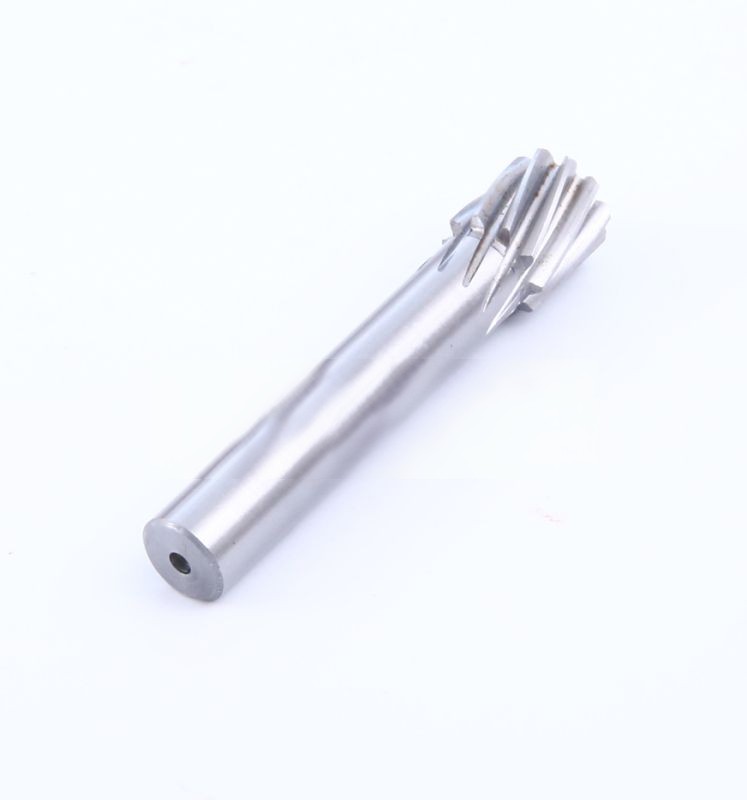

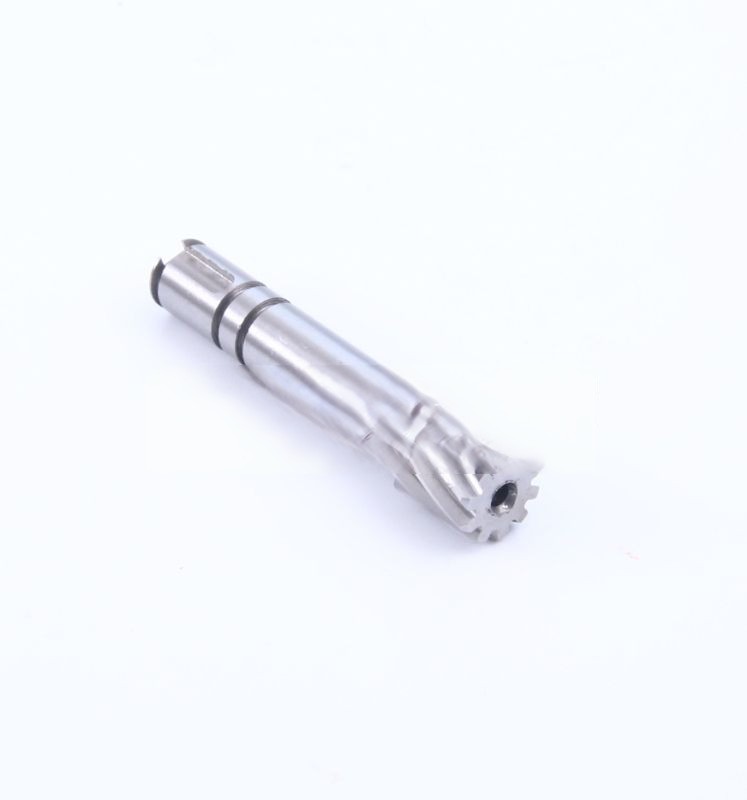

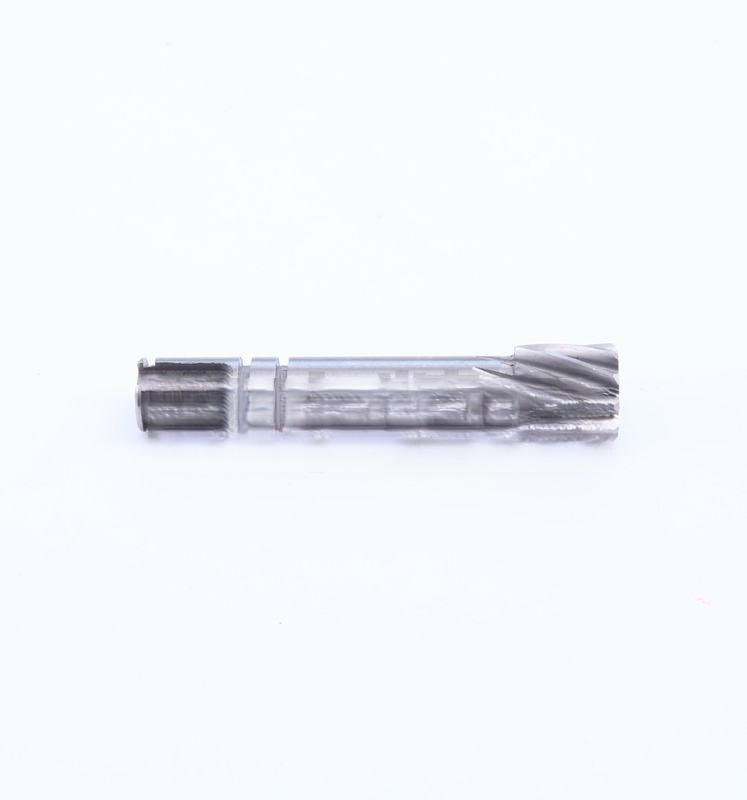

Single Drive (Double Drive) 9 Teeth / 10 Teeth / 11 Teeth / 12 Teeth / 14 Teeth Small Shaft

When the gear rotates counterclockwise, it can drive the gear meshed with the gear to rotate clockwise. At this time, the ratchet and ratchet lock release mechanism coaxial with the gear is in a self-locking state, and the ratchet ratchet lock release The mechanism can drive the three gears to rotate counterclockwise, and the said gear drives the gear to rotate clockwise. At this time, the lower wire feed wheel and the upper wire feed wheel arranged coaxially with the gear and the gear can complete the wire feeding of the ring making machine; When the first gear rotates clockwise, it can drive the gear meshing with the gear to rotate counterclockwise. At this time, the ratchet and ratchet lock release mechanism coaxial with the gear is in an unlocked state and cannot drive the gear to rotate. At this time, the cam can The ejector rod is driven to move upwards, and the ejector rod drives the cutter to cut off the welding wire to complete the automatic production of the welding ring.
