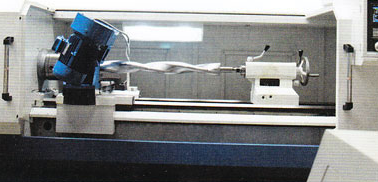

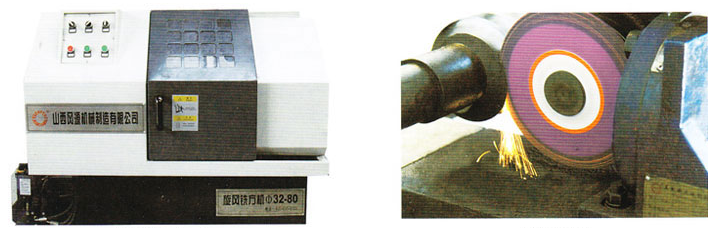

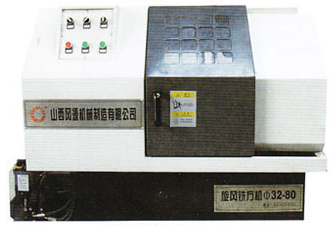

Features of XKW series CNC whirlwind milling machine
The machine tool adopts independent spindle, maintenance-free, high-rigidity and high-precision transmission;

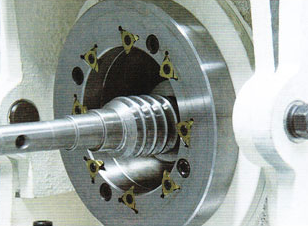

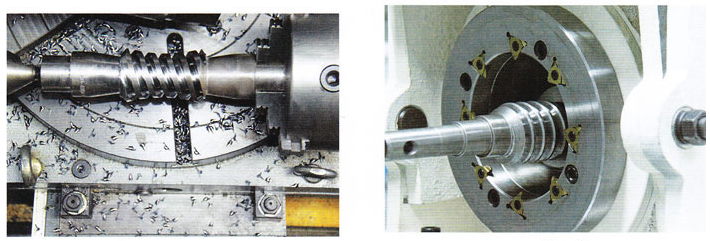

Cyclone milling is equipped with high strength double support structure, and special multi-position machine cutter holder;

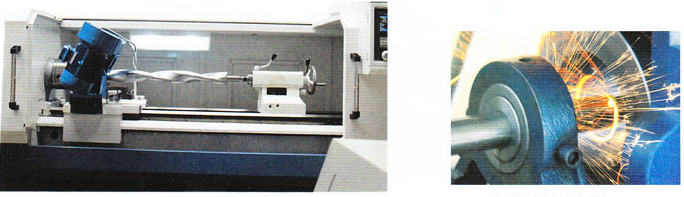

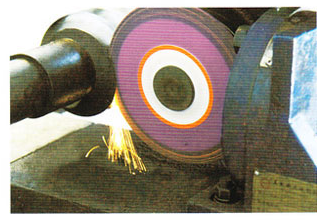

Cutting form: internal cutting type, external cutting type (external cutting type can increase thread grinding function);
It has the functions of servo spindle, Z axis, X axis and cyclone milling axis;
The number of axes controlled by the CNC system: 3 axes (main axis, Z axis, X axis), which are servo linked;
Cyclone milling spindle adopts AC variable frequency stepless speed regulation;

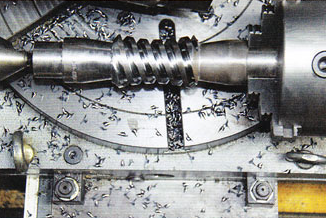

Processing products: worm, screw, screw, screw pump rotor, 8-shaped oil groove, rack, etc.
Specification
| Model | Processing range | Cutting form | CNC control form | Helical angle range | Surface roughness | Tool quantity | CNC numerical control system |
| XKW40 | Φ2-Φ40 | Inscribed type | Four-axis two-linkage | 0-12°+1' | 0.8μm | 4 | Standard GSK980TDB Optional FANUC Oi Mate TD Note: Model M is thread grinding function |
| XKW60 | Φ2-Φ60 | Inscribed type | Four-axis three-linkage | 0-12°+1' | 0.8μm | 4 | |
| XKW70 | Φ2-Φ70 | Inscribed type | Four-axis three-linkage | 0-12°+1' | 0.8μm | 8 | |
| XKW100 | Φ2-Φ100 | Inscribed type | Four-axis three-linkage | 0-12°+1' | 0.8μm | 8 | |
| XKW120 | Φ2-Φ120 | Inscribed type | Four-axis three-linkage | 0-12°+1' | 0.8μm | 8 | |
| XKW150 | Φ2-Φ150 | Inscribed type | Four-axis three-linkage | 0-12°+1' | 0.8μm | 8 | |
| XKW185 | Φ2-Φ185 | Inscribed type | Four-axis three-linkage | 0-12°+1' | 0.8μm | 8 | |
| XKW200 | Φ6-Φ200 | Circumscribed type | Four-axis three-linkage | 士45° | 1.6μm | 6 | |
| XKW200-M | Φ6-Φ200 | Circumscribed type | Four-axis three-linkage | 士45° | 0.8μm | 6 | |
| XKW300 | Φ6-Φ300 | Circumscribed type | Four-axis three-linkage | 士45° | 1.6μm | 6 | |
| XKW300-M | Φ6-Φ300 | Circumscribed type | Four-axis three-linkage | 士45° | 0.8μm | 6 | |
| XKW350 | Φ6-Φ350 | Circumscribed type | Four-axis three-linkage | 士45° | 1.6μm | 6 | |
| XKW350-M | Φ6-Φ350 | Circumscribed type | Four-axis three-linkage | 士45° | 0.8μm | 6 |

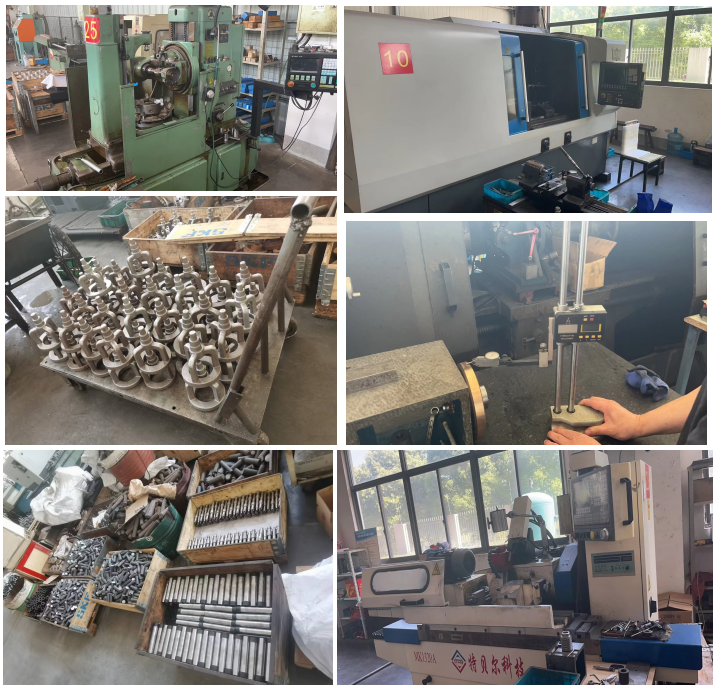

Production
