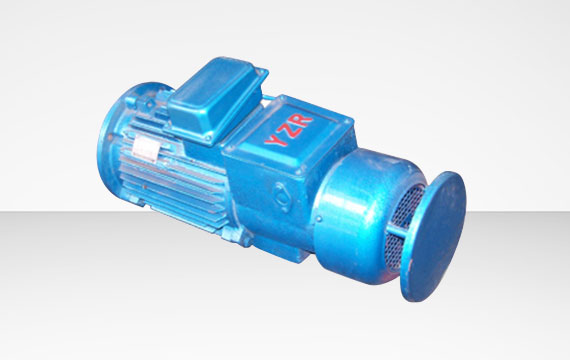

YZE, YZRE Motors

YZE and YZRE series electromagnetic braking three-phase asynchronous motors for lifting and metallurgy are derivative products of YZ and YZR series motors, which are composed of adding a DC electromagnetic brake to the YZ and YZR motors. It has the characteristics of large overload capacity, reliable braking, adjustable braking torque, compact structure, convenient control, and simple use and maintenance. Suitable for lifting and metallurgical machinery requiring frequent starting, rapid braking, accurate positioning, and intermittent operation.

The rated voltage of the motor is 380V, the rated frequency is 50Hz, the excitation voltage of the electromagnetic brake is 170V DC, and the voltage of the input brake is 380V (internally equipped with a rectifier)
