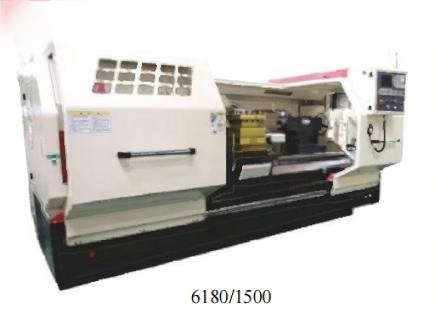

CKNC-6180 CKNC-61100 CKNC-61125 Three speed variable frequency gearbox for the front of the square c

Standard Configuration
YJ-980TDi system, guide rail width 600mm, integral floor standing bed foot, gearbox with three speed variable frequency, 400mm three jaw chuck, 15KW main motor, 300x300 tool holder, automatic lubrication system, cooling system, double door semi enclosed sheet metal, standard configuration without center frame.
Standard attachments (according to factory packing list)
Instruction manual and certificate of conformity, one set of double headed wrench, one set of hexagonal wrench, screwdriver, and foot screw.
Special configurations that can be optionally selected
CSK980TDi CNC system, FANUC Oi TF (5) Plus system, Siemens 808D CNC system, Taiwan/imported spindle bearings, four jaw single action/self centering chuck, hydraulic solid/hollow chuck, pneumatic chuck, manual center frame (20-170), manual center frame (220-350), manual follower frame (20-140), liquid jade center frame horizontal 6/8 station electric tool frame, hydraulic/pneumatic tailstock.
