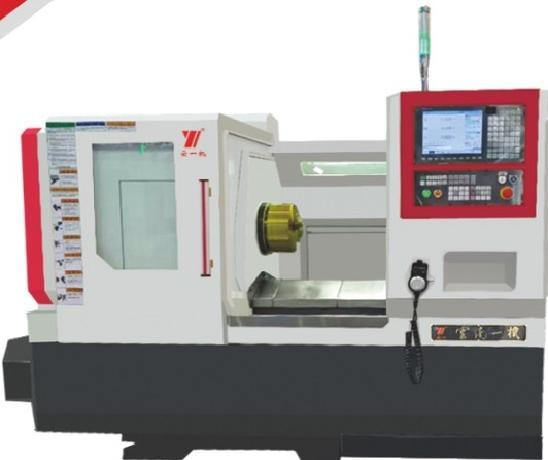

Rectangular guide rail center screw CKNC-50HP CKNC-50SP High rigidity disc drive series

Feature Introduction
(1) The bed body is made of resin sand cast as a whole, with secondary tempering and small thermal deformation, ensuring high-strength processing; (2) The X and Z directions are rectangular guide rails with integral pressure plates and strong seismic coefficients;
..*
(3) Z-direction center screw, making the axial force more stable; (4) The guide rail is fully protected by stainless steel, making chip removal convenient;
(5) 50SP is a three speed variable frequency speed control system for gearboxes, while 50HP is an independent spindle infinitely variable speed machine tool.
Standard Configuration
YJ-980TDi system, bidirectional rectangular hard rail, central screw, integral bed foot, all stainless steel protection, gearbox type and independent spindle type, spindle aperture optional, 10 hour manual three jaw chuck, four station tool holder, no tailstock.
Special configurations that can be optionally selected
Guangshu GSK980 series systems, KND, FANUCOi, Siemens and other systems.
Optional hydraulic chuck, pneumatic chuck, spindle indexing positioning, single axis and multi axis power head.
