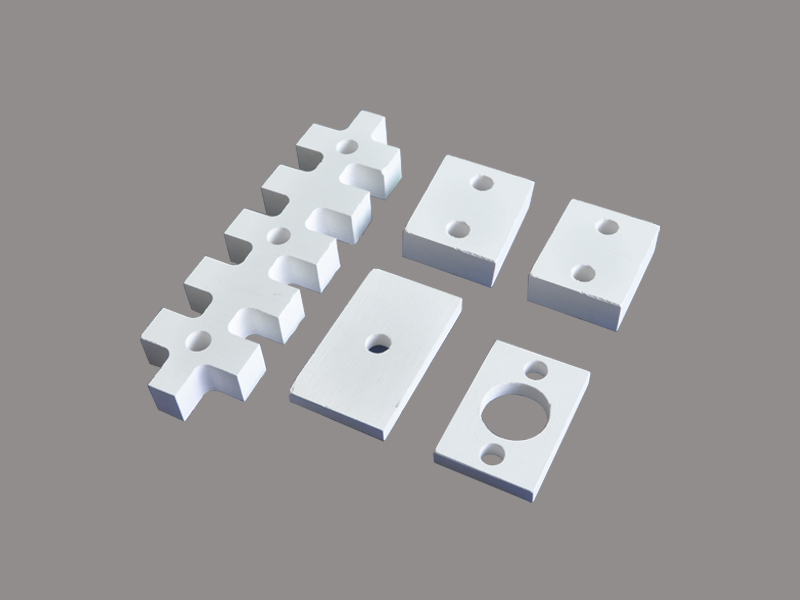

Calcium silicate board special-shaped parts

Product Technical DataSheet
Name & Code of Products: High-density calcium silicate board , code: K series board
Application scope: covering non-ferrous metals, petrochemicals, steel, glass, electronics, fire protection and many other industries. It has the advantages of high strength, excellent insulation, thermal shock resistance, thermal conductivity, and quality stability.
All panels are non-asbestos products.
ProjectKF-850
Maximum heat resistance temperature ° c1000
Bulk densityKg / m³850±10%
Flexural strength MPa≥8.2MPa
Compressive strength MPa≥15 MPa
Thermal conductivity W/mk200 °≤0.12
400 °≤0.10
500 °≤0.14
Thermal expansion coefficient %100 °0.02
200 °0.02
400 °0.14
600 °0.30
700 °0.34
High temperature linear shrinkage % 7 50X3hLength / Width≤0.30
Thick≤ 2.20
UseThermal insulation, heat insulation, used for mechanical equipment frame components, used for heat insulation of parts with high temperature contact, equipment local heat preservation, heat insulation, non-conductive, electrical insulation
Plate specifications (length * width * thickness) mm tolerance mm1200*1200*(25-110)mm ±2mm

The data represents typical average results obtained by testing under ASTM or other acceptable procedures as required, and is subject to normal variations and should not beused for specifications.
