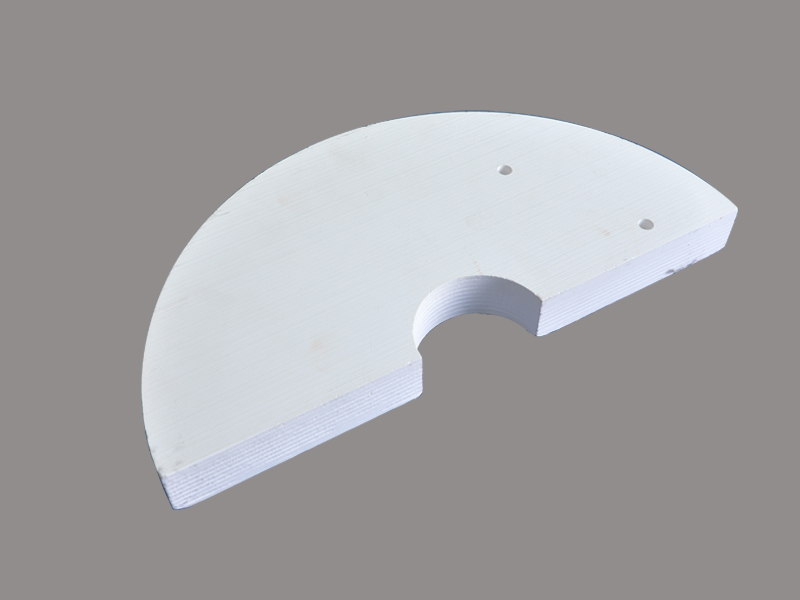

Calcium silicate board special-shaped parts

Product Technical DataSheet
Name & Code of Products: High-density calcium silicate board , code: K series board
Application scope: covering non-ferrous metals, petrochemicals, steel, glass, electronics, fire protection and many other industries. It has the advantages of high strength, excellent insulation, thermal shock resistance, thermal conductivity, and quality stability.
All panels are non-asbestos products.
ProjectKT-850
Maximum heat resistance temperature ° c1000
Bulk densityKg / m³850±10%
Flexural strength MPa≥7.9 MPa
Compressive strength MPa≥19 MPa
Thermal conductivity W/mk200 °≤0.11
400 °≤0.14
500 °≤0.16
Thermal expansion coefficient %100 °0.02
200 °0.02
400 °0.14
600 °0.31
700 °0.37
High temperature linear shrinkage % 750X3hLength / Width≤ 0.28
Thick≤ 2.03
UseAdapter plates, buffer plates, launder liners, floats, machined filter boxes, baffles Contact with non-ferrous metals, thermal insulation gaskets for electronic equipment, flange insulation, thermal insulation enclosures, components, base plate components, thermal press insulation .Low thermal conductivity, thermal shock resistance, and excellent machining performance.
Plate specifications (length * width * thickness) mm tolerance mm1200*1200*(25-110)mm±2mm

The data represents typical average results obtained by testing under ASTM or other acceptable procedures as required, and is subject to normal variations and should not beused for specifications.
