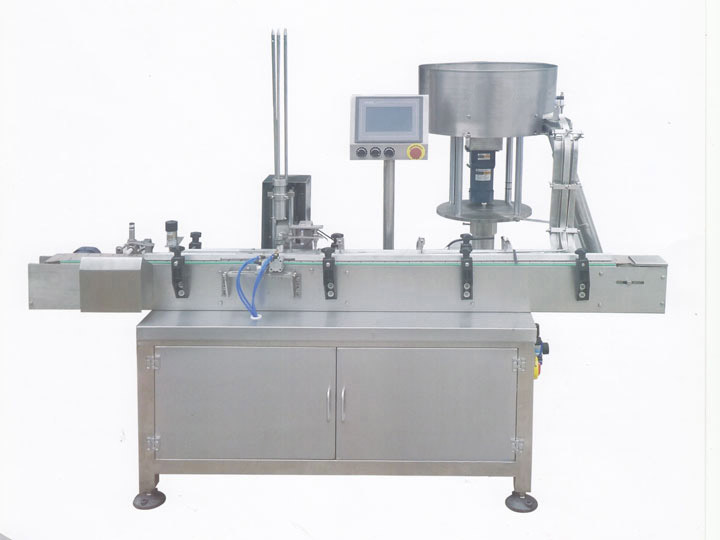

XD-DSD-80 single-head aluminum foil padding machine

This machine is suitable for pharmaceutical, chemical, pesticide, cosmetics, food and other packaging industries. The main purpose is to fill aluminum foil (sealing gasket). Replace the previous manual stopper.
This machine adopts pure mechanical transmission, Japanese Mitsubishi variable frequency speed regulation, stable and consistent performance, automatic capping, automatic capping, automatic capping, automatic capping and capping, cappeless shutdown, reverse capping shutdown, vacuum automatic suction, disposable vertical stopper, reverse pad and no pad detection and removal, counting and sub-packaging, and total output display. The outsourcing is all made of high-quality stainless steel, beautiful and sanitary. The manual only needs to pour the cover into the capping machine and put the aluminum foil into the aluminum foil channel. The rest will be completed by the equipment itself. It is fast, hygienic and up to standard, and the plug quality is good. The troubles of no pad and double pad are solved thoroughly, and the product quality and output are improved.

Specification

Applicable standard

15-50 mm circular lid

Lining head

1

Lining error

土 0.5mm

Production capacity

50-80 pcs / min

Power

220V 50Hz

Air pressure

0.4-0.5MPa

Total power

1.2Kw

Weight

400Kg

Dimensions

2000 * 700 * 1500mm



Feature

1.Automatic capping

2.Stop without cover and wait

3.Reverse cover shutdown

4.Vacuum adsorption plug pad

5.Automatic removal of back-pass without cushion

6.Counting subpackage
