XD-ZSP-200B linear aluminum foil padding machine

This machine is suitable for pharmaceutical, chemical pesticide, cosmetics, food and other packaging industries. The main purpose is to fill aluminum foil gasket. Replace the previous manual plug gasket.
XD-ZSP-200B linear aluminum foil padding machine is designed to achieve the purpose of rational production. It adopts mechanical transmission, Mitsubishi frequency conversion speed regulation, and pneumatic overturning vacuum suction gasket, which can be inserted vertically at one time. The automatic operation of the padding process is simple. Just pour the cover into the storage box and put the aluminum foil gasket into the aluminum foil channel. The rest will be completed by the equipment itself. Fast, stable and consistent performance.

Specification

Applicable specifications

20-40mm

Plug head number

6 pcs

Production capacity

100-240pcs/min

Plug pad error

±0.5 mm

Power supply

220V/50Hz

Air source pressure

0.3—0.5MPa

Total power

1.5KW

Weight

650Kg

Dimension

3500x750x1700

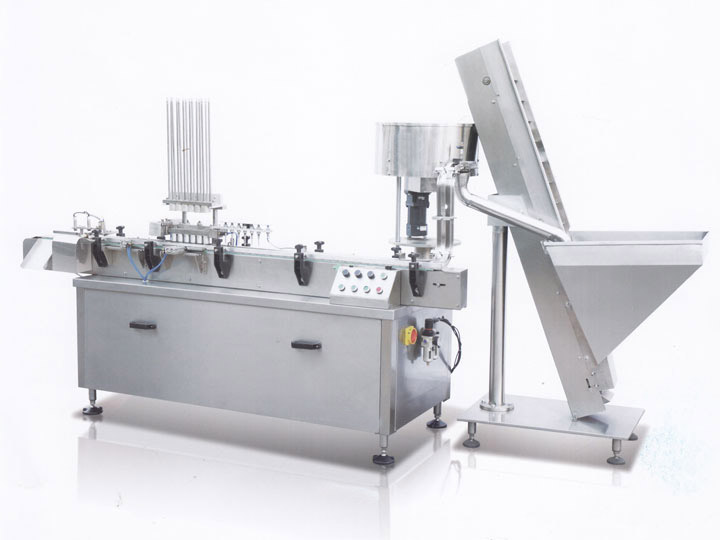

XD-ZSP-200B linear aluminum foil padding machine.jpg

Feature

1. Cover storage, automatic lifting and feeding, automatic capping

2. No cover shutdown, reverse cover alarm shutdown

3. Reverse gasket, no gasket detection and removal

4. Counting subpackage and total output display

5. Prevent double gasket device
