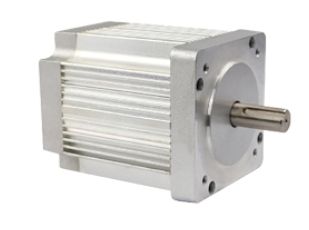

Winding Type--Star
Hall Effect angle--120°
Insulation Class--Class B insulation
Ambient Temperature Range---20C~+50C
Insulation Resistance--100MQMin 500VC DC
Dielectric Strength--700W AC 1 minute

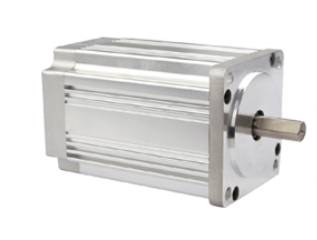

Specification
| Model | 90BLF85-230 | 90BLF110-430 | 90BLF135-430 |
| Number of Poles | 4 | ||
| Number of Phases | 3 | ||
| Rated Voltage VDC | 24 | 48 | 48 |
| Rated Speed RPM | 3000 | ||
| Rated Torque N-m | 1 | 1.8 | 2.5 |
| Rated Current Amps | 18 | 14.8 | 19.5 |
| Output Power W | 315 | 565 | 785 |
| Peak Torque N-m | 3 | 5.4 | 7.5 |
| Peak Current Amps | 54 | 42 | 55 |
| Torque constant N-m/A | 0.120 | 0.131 | 0.127 |
| Back EMF V/kRPM | 13 | 13.7 | 13.3 |
| Rotor inertia Kg·cm2 | 160 | 250 | 340 |
| Body Length (L) mm | 85 | 110 | 135 |
| Mass kg | 3.5 | 4.5 | 5 |

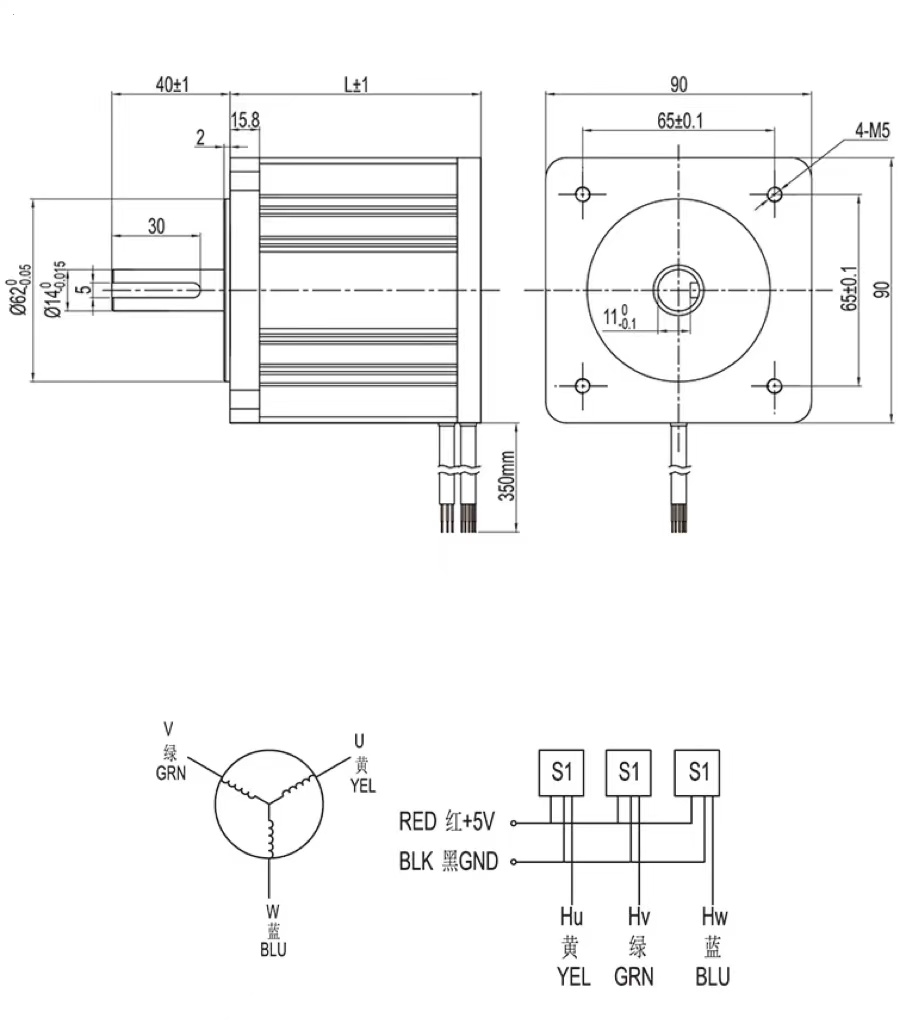

Diagram
