Winding Type -------- Delta
Hall Effect angle -------- 120 º electrical angle
Insulation Class -------- B
Ambient temperature range -- - 20 ℃~+50 ℃
Insulation Resistance -------- 100M Ω Min.500V DC
Dielectric Strength ---- 700VAC 1minute
Specification
| Model | 130BLF50 | 130BLF75 | 130BLF100 | 130BLF125 | 130BLF150 |
| Number of Poles | 8 | ||||
| Number of Phases | 3 | ||||
| Rated Voltage VDC | 48 | 310 | 310 | 310 | 310 |
| Rated Speed RPM | 3000 | 3000 | 3000 | 3000 | 3000 |
| Rated Torque N-m | 5 | 7.5 | 10 | 12.5 | 15 |
| Rated Current Amps | 38 | 9 | 12 | 15 | 18 |
| Output Power W | 1570 | 2356 | 3141 | 3926 | 4712 |
| Peak Torque N-m | 15 | 22.5 | 30 | 37.5 | 45 |
| Peak Current Amps | 114 | 27 | 36 | 45 | 54 |
| Torque constant N-m/A | 0.131 | 0.845 | 0.845 | 0.845 | 0.845 |
| Back EMF V/kRPM | 13.7 | 88.6 | 88.6 | 88.6 | 88.6 |
| Rotor inertia Kg·cm2 | 7.2 | 10.8 | 14.4 | 18 | 21.6 |
| Body Length (L) mm | 158 | 183 | 208 | 233 | 258 |
| Mass kg | 7 | 9 | 11 | 13 | 15 |

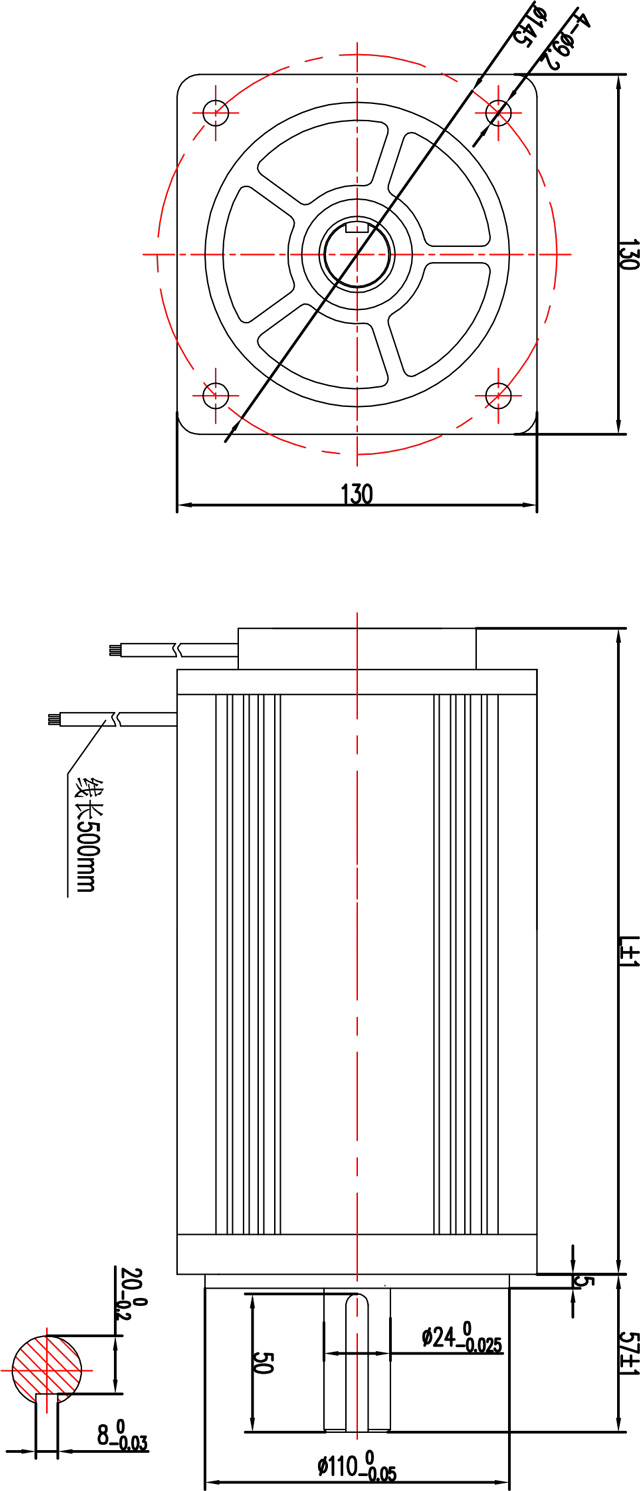

Diagram
