Winding Type--Star
Hall Effect angle--120°
Insulation Class--Class B insulation
Ambient Temperature Range---20C~+50C
Insulation Resistance--100MQMin 500VC DC
Dielectric Strength--700W AC 1 minute
Specification
| Model | 110BLF110-430 | 110BLF110-630 | 110BLF170-630 | 110BLF230-630 |
| Number of Poles | 8 | |||
| Number of Phases | 3 | |||
| Rated Voltage VDC | 48 | 310 | 310 | 310 |
| Rated Speed RPM | 3000 | |||
| Rated Torque N-m | 3.2 | 3.2 | 6.4 | 9.6 |
| Rated Current Amps | 28 | 4.1 | 8.2 | 13 |
| Output Power Watts | 1000 | 1000 | 2000 | 3000 |
| Peak Torque N-m | 10 | 10 | 20 | 30 |
| Peak Current Amps | 84 | 13 | 25 | 39 |
| Torque constant N-m/A | 0.12 | 0.79 | 0.79 | 0.74 |
| Back EMF V/kRPM | 8.4 | 55 | 55 | 55 |
| Rotor inertia Kg·cm2 | 3 | 3 | 6 | 6 |
| Body Length (L) mm | 110 | 110 | 170 | 230 |
| Mass kg | 4.5 | 4.5 | 7 | 9.5 |

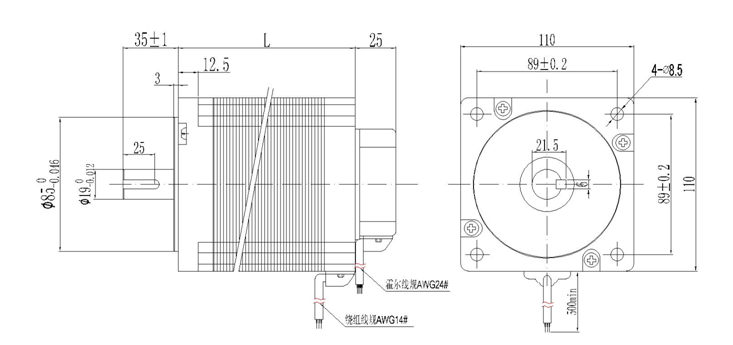

Diagram
