Item/Model		Working disc size(mm)	Center height(mm)	Center aperture/reference aperture(mm)	Dimensions of T-shaped slot on disk surface	Datum positioning key
						(mm)

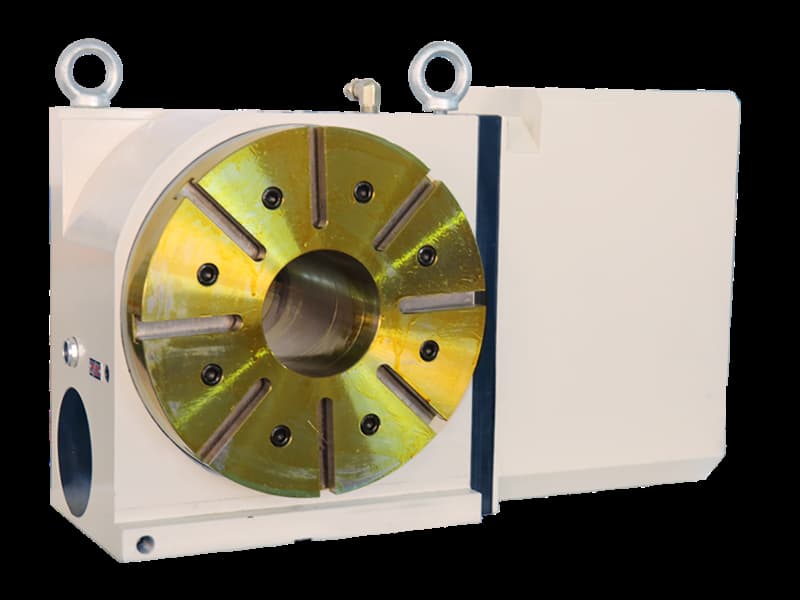

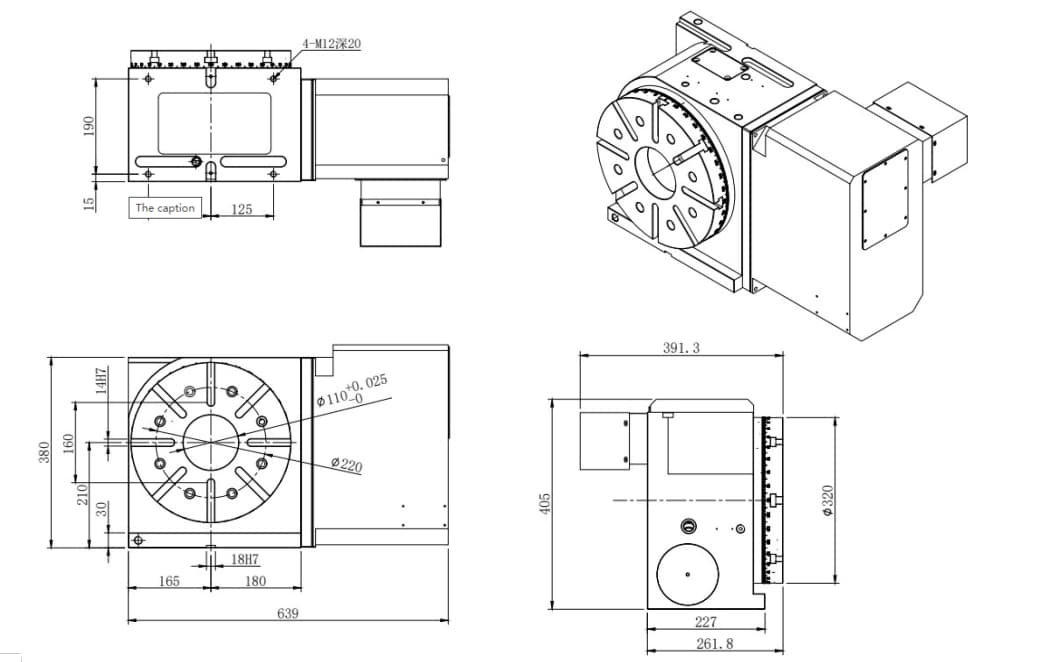

YCB320-H210		320	210	110H7	14H7	18H7
Use motor		Reduction ratio	Motor return speed	90 ° indexing time	Minimum setting unit	Allowable cutting torque
FANUC	MITSUBI SHI		2000rmp(rpm/min)	(sec)	(deg)	(kg*m)
B12	HF204	0.091666667	33.3	0. 2	5° /0.001°	65
Pneumatic brake torque		Hydraulic brake torque	Toothed disc brake torque	Segmentation accuracy	Repetition precision	Allowable bearing capacity
(kg*m)		(kg*m)	(kg*m)	(sec)	(sec)	(kg)
						vertical	level
40		142	500	±15	5	220	500
