Single Basket Tilting Coating Machine

Equipment specification

1. Equipment features: modular design and installation; process parameters have a memory function with real-time monitoring, in addition to different workpieces corresponding to different procedures; a machine for multiple uses; can do different coatings according to different needs, and coating tanks and material frames are easy to replace.

2. Equipment configuration: six-stage reducer power; Mitsubishi servo motor; Siemens frequency converter and plc.

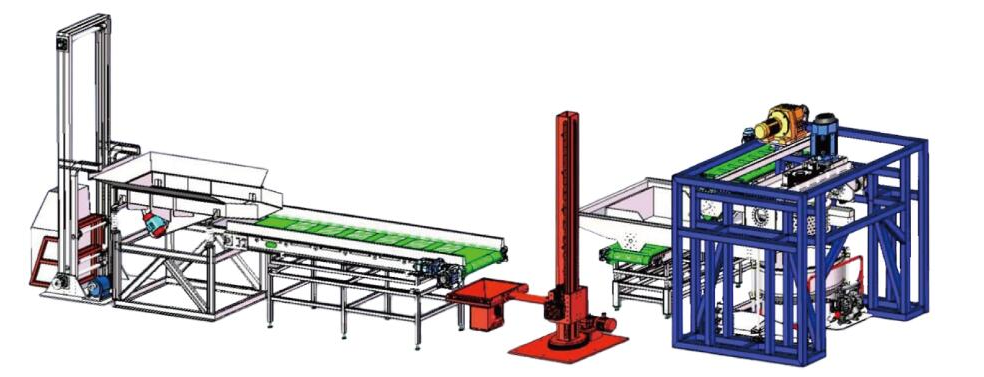

3. Equipment structure composition and description: The coating system sets the integration of dipping, dumping and unloading, including flip transfer system, No.1 weighing conveyor, No.2 conveyor, vertical feeding system, spreader, dipping tank lifting mechanism, centrifugal drying mechanism, flip discharging mechanism and other components. The dipping tank lifting mechanism can lift the dipping tank, and the centrifugal drying mechanism can remove the excess liquid on the surface of the workpiece in that it can rotate forward and reverse to facilitate the flow of the accumulated liquid in the grooves on the workpiece. The flip discharging mechanism is used for discharging the workpiece after centrifugation. Weighing mechanism (No.1 weighing conveyor, No.2 conveyor, vertical feeding system) can accurately calculate the required loading capacity of the basket.

4. Applicable industry: zinc-based coating.

5. Applicable workpieces: inner hexagon, outer hexagon and other applicable workpieces suitable for dip coating process.

6. Processing parts length: M5-M22 type standard parts. Length ≤ 220mm, the weight of a single part ≤ 250g.

7. Safety and environmental protection: suitable for solvent, water agent, paint and closed layer, fully automatic design, can save the amount of coating liquid put volume, high efficiency and energy saving.

8. Fault alarm: When there is a fault in operation, the computer operation panel will show the specific problems occurring in it, and you can consult the manual to find out
