Adopt steel structure weldment
Hydraulic station power: 3KW, uncoiler power 1.5KW, one electrical control cabinet
Applicable coil inner hole: Φ650-Φ750
Applicable coil outer diameter: 1400mm-2000mm
Allowable load: 10 tons
Specification
Hydraulic Station Power | 3KW, uncoiler power 1.5KW, one electrical control cabinet |
Loading Width | 450mm |
Applicable Coil Inner Hole | Φ650-Φ750 |
Applicable Coil Outer Diameter | 1400mm-2000mm |
Allowable Load | 10 tons |
| Adopt steel structure weldment | |
Structural Form

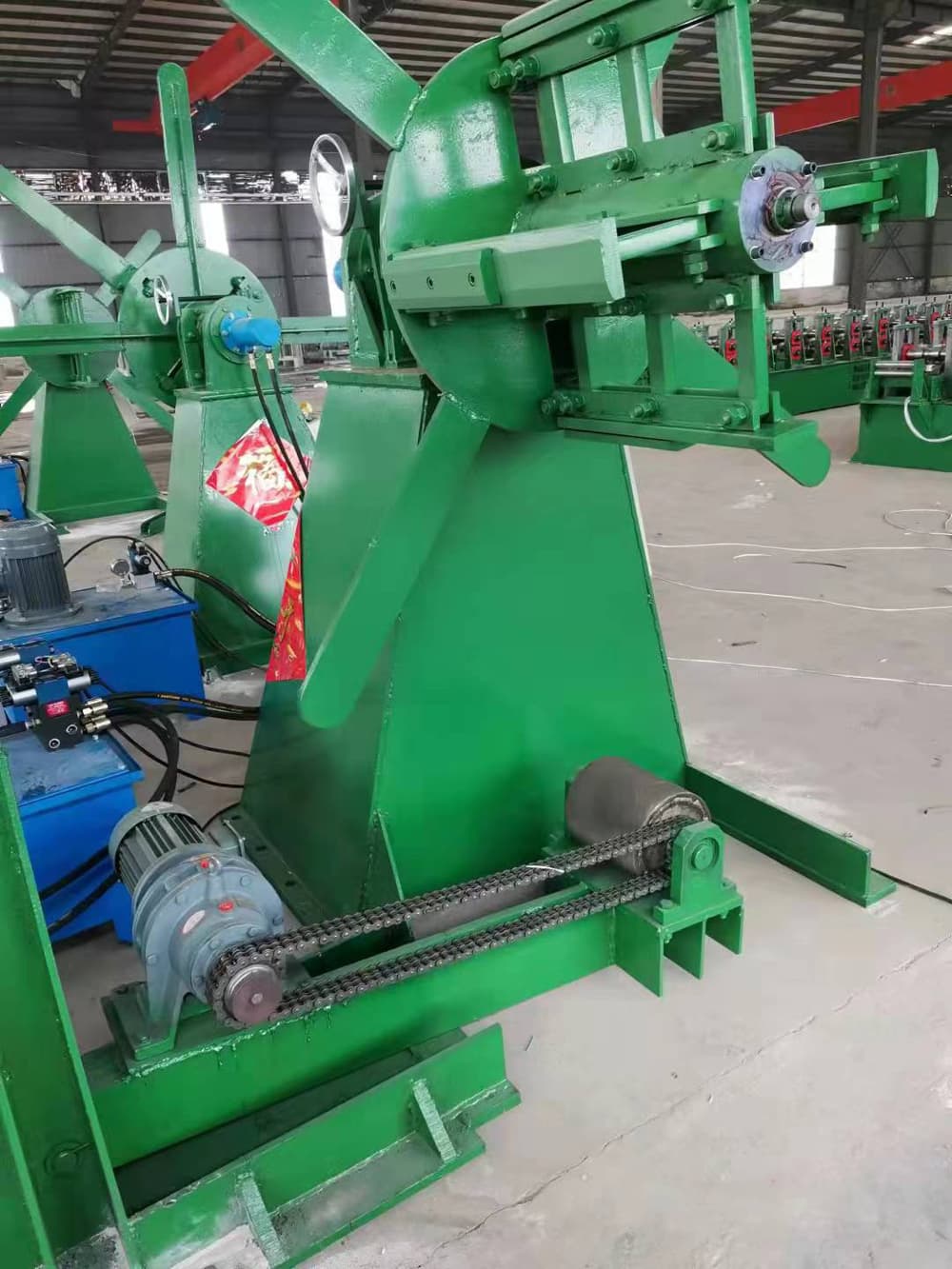

The steel belt is hoisted on the four-edged expansion and contraction feeding rack, and the expansion and contraction are driven by the oil cylinder. The expansion and contraction cylinder is installed at the end of the main shaft. There is always a resistance during unwinding to prevent bulk material during unwinding, and the damping can be adjusted.
