Specification

Maximum Allowable Feed Thickness	2mm
Maximum Allowable Feed Width	300mm

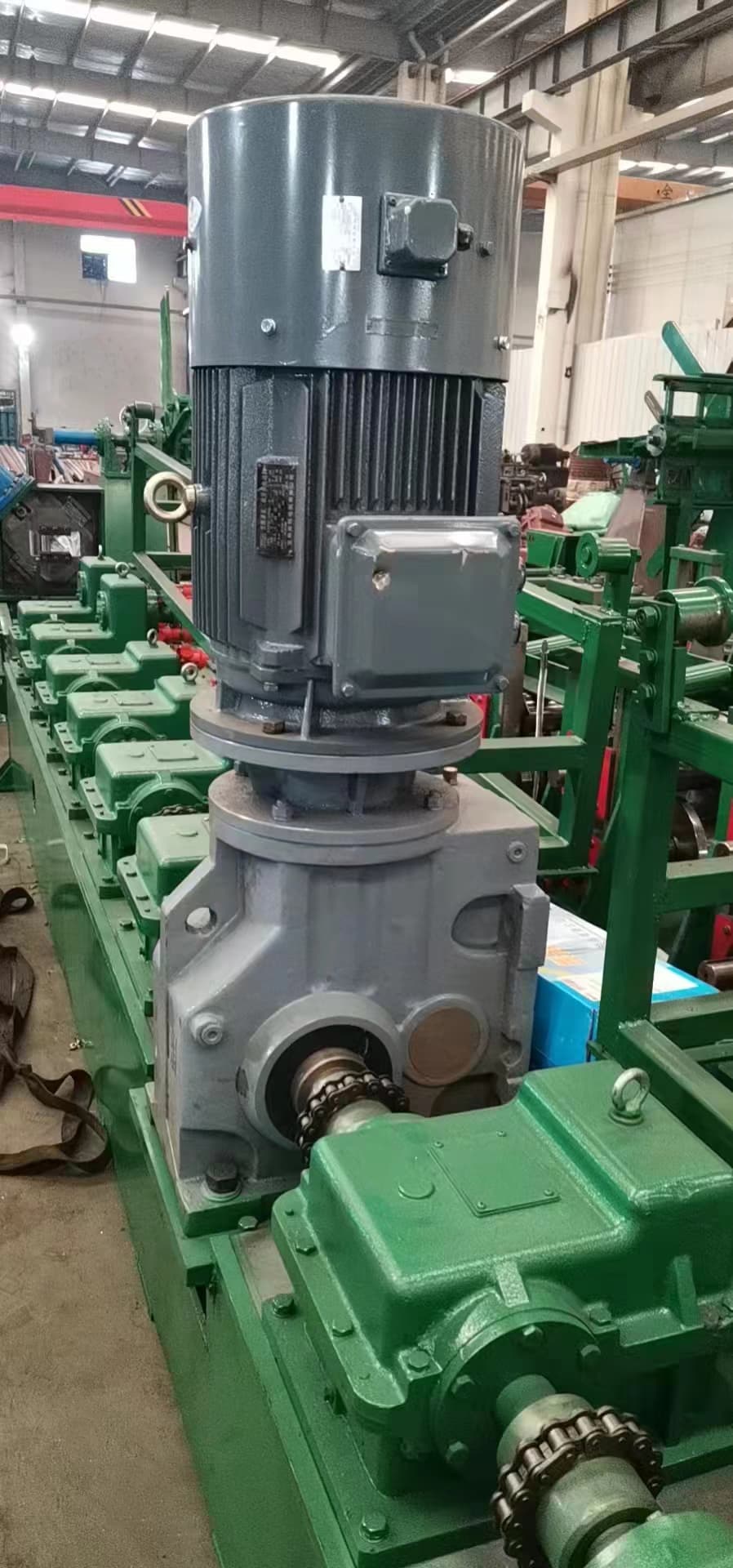

Host Power	22KW, 4-pole frequency conversion motor directly connected to K107 vertical hard-tooth surface reducer
Front And Rear Center Distance Of Rack	500mm
Transfer Gearbox	the first and second channels are upper and lower shaft transmissions, and the rest are lower single shaft transmissions
Universal Joint Shaft Model	BJ212 (connection between gear box and roller shaft)
Bevel Gear Module	M7, teeth number: Z20
Bevel Gear Material	40Cr
High Frequency Quenching Hardness Of Tooth Surface	HRC52-55
Input Shaft Diameter	Φ45
Output Shaft Diameter	Φ40
Connection Between Transfer Gearboxes	1"×16 tooth sprocket coupling
Material	ordinary carbon steel coil
Rack Material	HT200
Roller Die Shaft Diameter	Φ60mm, two-end bearing gear Φ55
Inside Bearing	6211, 2 pieces
Outer Bearing	6013, 2 pieces
The frame is fixed, and the profile width is adjusted by wire-cut looper adjustment. The looper is placed inside or outside the roll, and the inner roll is fixed.
