Type: singer-cylinder, vertical, 4-stroke, direct injection, air-cooled diesel.
Maximun Output: 4.9KW.
Starting Model: recoil start.
Cooling Type: force air-cooled.
Specification

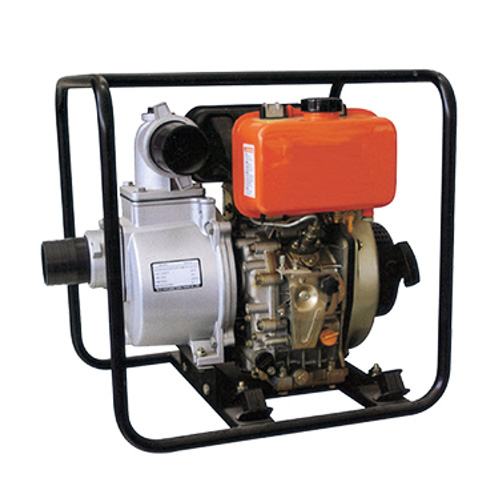

| Model | 3 inch, DWP80 |
| Suction Port Diameter(mm) | 80 |
Discharge Port Diameter(mm) | 80 |
| Max Suction Head(m) | 8 |
| Total Head(m) | 25 |
| Max Flow Rate(L/min) | 833 |
| Starting Model | recoil start |
| New Weight(kg) | 49 |
| Packing Dimensions(mm,LxWxH) | 625x540x580 |
| Engine Model | 178F(E) |
| Type | singer-cylinder, vertical, 4-stroke, direct injection, air-cooled diesel |
| BorexStroke(mm) | 78x62 |
| Engine Speed(rpm) | 3600 |
| Displacement(cc) | 296 |
| Continuous Output(KW) | 4.4 |
| Maximun Output(KW) | 4.9 |
| Cooling Type | force air-cooled |
