Type: singer-cylinder, vertical, 4-stroke, direct injection, air-cooled diesel.
Maximun Output: 4.05KW.
Starting Model: recoil start.
Cooling Type: force air-cooled.
Specification

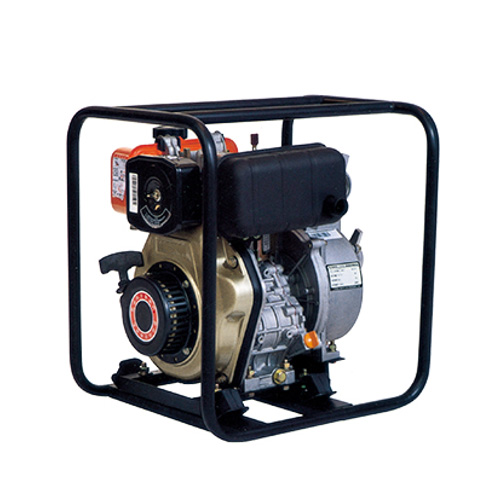

| Model | 2 inch, YDP50B/E |
| Suction Port Diameter(mm) | 50 |
Discharge Port Diameter(mm) | 50 |
| Max Suction Head(m) | 8 |
| Total Head(m) | 26 |
| Max Flow Rate(L/min) | 600 |
| Starting Model | recoil start |
| New Weight(kg) | 37 |
| Packing Dimensions(mm,LxWxH) | 560x475x530 |
| Engine Model | 173F(E) |
| Type | singer-cylinder, vertical, 4-stroke, direct injection, air-cooled diesel |
| BorexStroke(mm) | 73x59 |
| Engine Speed(rpm) | 3600 |
| Displacement(cc) | 247 |
| Continuous Output(KW) | 3.7 |
| Maximun Output(KW) | 4.05 |
| Cooling Type | force air-cooled |
