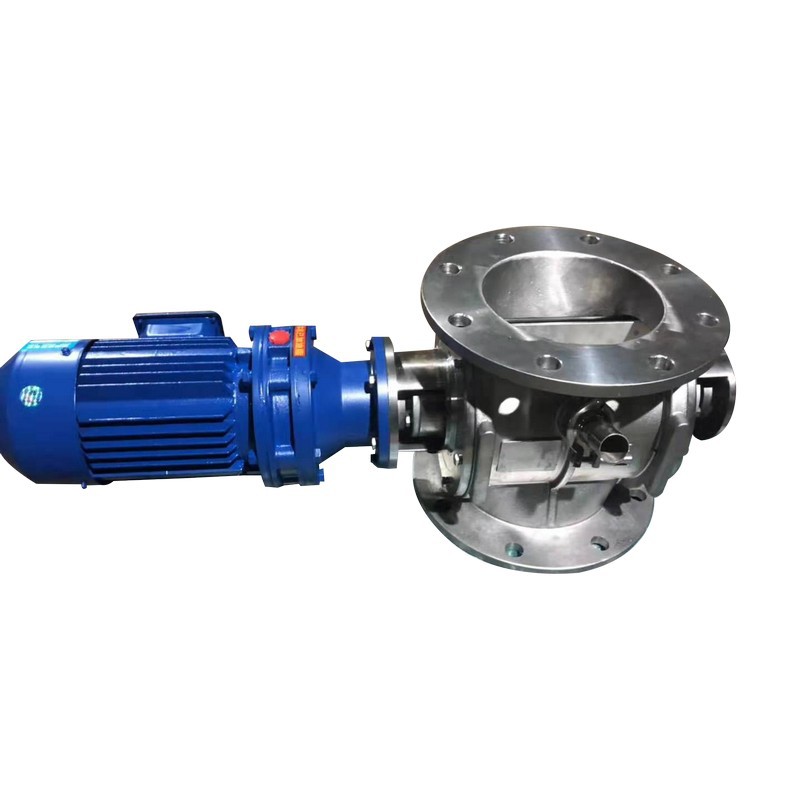

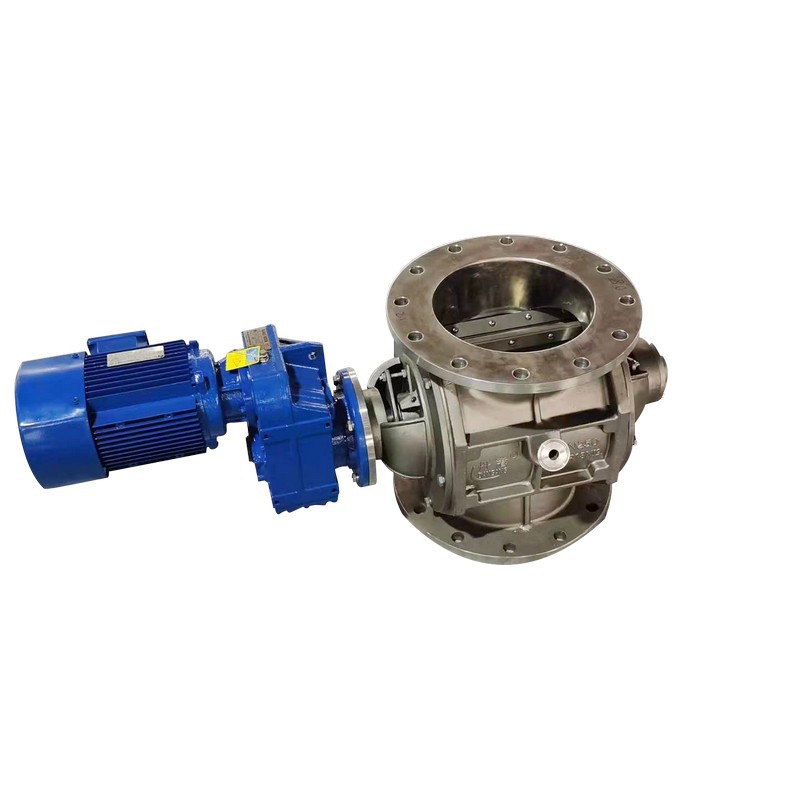

BZRT Chain Transmission Type Discharger Valve is specially designed so that the rotary valve can be used under high vacuum conditions.
In high vacuum, the bulk material is not easy to fall into the rotary valve and discharge, and the air leakage is also large, and the vacuum is destroyed.
The valve body is equipped with a ventilating interface with a special structure, and no material is accumulated in the air passage.
The overall optimized design enables the feeder to adapt to various process conditions and makes it easier for materials to enter and exit.
We can carry out non-standard design and manufacture according to the special needs of users.

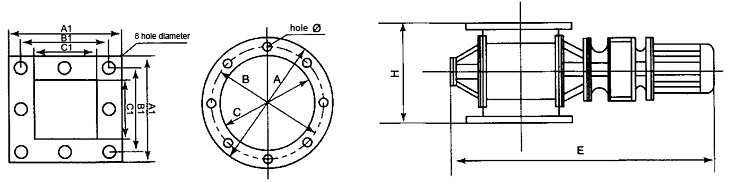

Specification
| Model | Volume Per Revolution | Motor Power (kw) | Rotating Speed (r/min) | Working Temperature (℃) | Weight (kg) | Installation Connection Size | ||||||||
| A | B | C | A1 | B1 | C1 | H | E | n-Φ (mm) | ||||||
| Type 2 | 2 liters/rev | 0.75 | 24 / 43 | ≤80 | 40 | 240 | 200 | 150 | 240*240 | 200*200 | 150*150 | 240 | 850 | 8-Φ11 |
| Type 4 | 4 liters/rev | 0.75 | 60 | 280 | 240 | 180 | 270*270 | 230*230 | 180*180 | 280 | 900 | 8-Φ11 | ||
| Type 6 | 6 liters/rev | 0.75 | 75 | 300 | 260 | 200 | 290*290 | 250*250 | 200*200 | 300 | 930 | 8-Φ11 | ||
| Type 8 | 8 liters/rev | 0.75 | 80 | 320 | 280 | 220 | 310*310 | 270*270 | 220*220 | 320 | 950 | 8-Φ11 | ||
| Type 10 | 10 liters/rev | 1.1 | 100 | 340 | 300 | 240 | 330*330 | 290*290 | 240*240 | 340 | 1000 | 8-Φ13 | ||
| Type 12 | 12 liters/rev | 1.1 | 115 | 360 | 320 | 260 | 350*350 | 310*310 | 260*260 | 360 | 1030 | 8-Φ17 | ||
| Type 14 | 14 liters/rev | 1.1 | 130 | 380 | 340 | 280 | 370*370 | 330*330 | 280*280 | 380 | 1050 | 8-Φ17 | ||
| Type 16 | 16 liters/rev | 1.5 | 150 | 400 | 360 | 300 | 400*400 | 350*350 | 300*300 | 400 | 1080 | 8-Φ17 | ||
| Type 18 | 18 liters/rev | 1.5 | 165 | 420 | 380 | 320 | 420*420 | 370*370 | 320*320 | 420 | 1100 | 8-Φ17 | ||
| Type 20 | 20 liters/rev | 1.5 | 180 | 440 | 400 | 340 | 440*440 | 390*390 | 340*340 | 440 | 1150 | 8-Φ17 | ||
| Type 26 | 26 liters/rev | 2.2 | 230 | 500 | 460 | 400 | 510*510 | 450*450 | 400*400 | 520 | 1300 | 12-Φ17 | ||
| Type 30 | 30 liters/rev | 3 | 280 | 560 | 500 | 440 | 550*550 | 495*495 | 440*440 | 550 | 1350 | 12-Φ17 | ||
| Type 40 | 40 liters/rev | 3 | 320 | 620 | 558 | 500 | 620*620 | 558*558 | 500*500 | 620 | 1500 | 12-Φ17 | ||
| Type 50 | 50 liters/rev | 3 | 380 | 650 | 600 | 540 | 650*650 | 600*600 | 540*540 | 650 | 1600 | 12-Φ17 | ||
