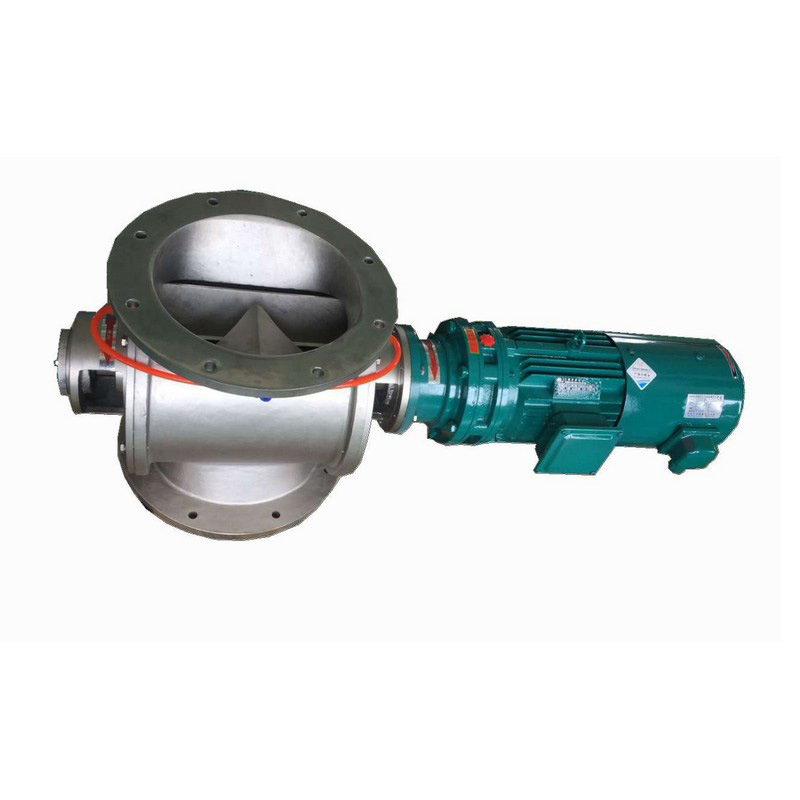

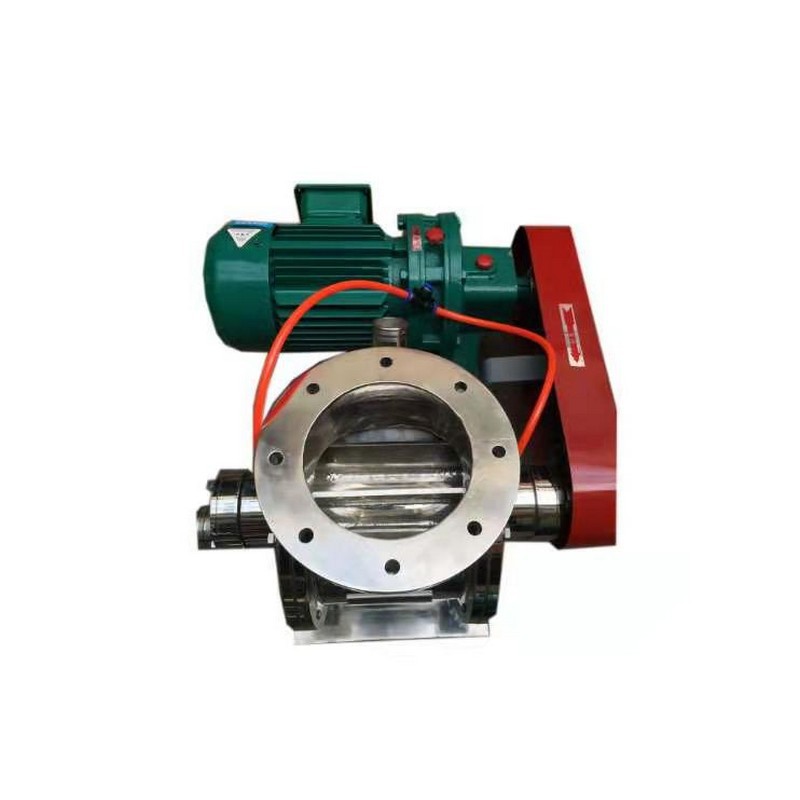

The two ends of the bearing of this model adopt pneumatic pressure to prevent the impact of powdery particles on the bearing and prolong the service life of the bearing.
Specification
| Model | Volume Per Revolution | Motor Power (kw) | Rotating Speed (r/min) | Working Temperature (℃) | Weight (kg) | Installation Connection Size | ||||||||
| A | B | C | A1 | B1 | C1 | H | E | n-Φ (mm) | ||||||
| Type 2 | 2 liters/rev | 0.75 | 24 / 43 | ≤80 | 40 | 240 | 200 | 150 | 240*240 | 200*200 | 150*150 | 240 | 850 | 8-Φ11 |
| Type 4 | 4 liters/rev | 0.75 | 60 | 280 | 240 | 180 | 270*270 | 230*230 | 180*180 | 280 | 900 | 8-Φ11 | ||
| Type 6 | 6 liters/rev | 0.75 | 75 | 300 | 260 | 200 | 290*290 | 250*250 | 200*200 | 300 | 930 | 8-Φ11 | ||
| Type 8 | 8 liters/rev | 0.75 | 80 | 320 | 280 | 220 | 310*310 | 270*270 | 220*220 | 320 | 950 | 8-Φ11 | ||
| Type 10 | 10 liters/rev | 1.1 | 100 | 340 | 300 | 240 | 330*330 | 290*290 | 240*240 | 340 | 1000 | 8-Φ13 | ||
| Type 12 | 12 liters/rev | 1.1 | 115 | 360 | 320 | 260 | 350*350 | 310*310 | 260*260 | 360 | 1030 | 8-Φ17 | ||
| Type 14 | 14 liters/rev | 1.1 | 130 | 380 | 340 | 280 | 370*370 | 330*330 | 280*280 | 380 | 1050 | 8-Φ17 | ||
| Type 16 | 16 liters/rev | 1.5 | 150 | 400 | 360 | 300 | 400*400 | 350*350 | 300*300 | 400 | 1080 | 8-Φ17 | ||
| Type 18 | 18 liters/rev | 1.5 | 165 | 420 | 380 | 320 | 420*420 | 370*370 | 320*320 | 420 | 1100 | 8-Φ17 | ||
| Type 20 | 20 liters/rev | 1.5 | 180 | 440 | 400 | 340 | 440*440 | 390*390 | 340*340 | 440 | 1150 | 8-Φ17 | ||
| Type 26 | 26 liters/rev | 2.2 | 230 | 500 | 460 | 400 | 510*510 | 450*450 | 400*400 | 520 | 1300 | 12-Φ17 | ||
| Type 30 | 30 liters/rev | 3 | 280 | 560 | 500 | 440 | 550*550 | 495*495 | 440*440 | 550 | 1350 | 12-Φ17 | ||
| Type 40 | 40 liters/rev | 3 | 320 | 620 | 558 | 500 | 620*620 | 558*558 | 500*500 | 620 | 1500 | 12-Φ17 | ||
| Type 50 | 50 liters/rev | 3 | 380 | 650 | 600 | 540 | 650*650 | 600*600 | 540*540 | 650 | 1600 | 12-Φ17 | ||
