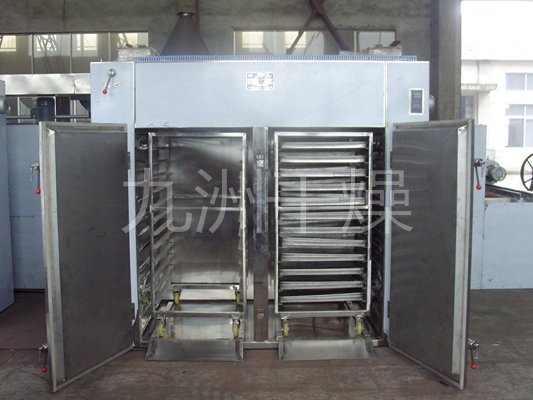

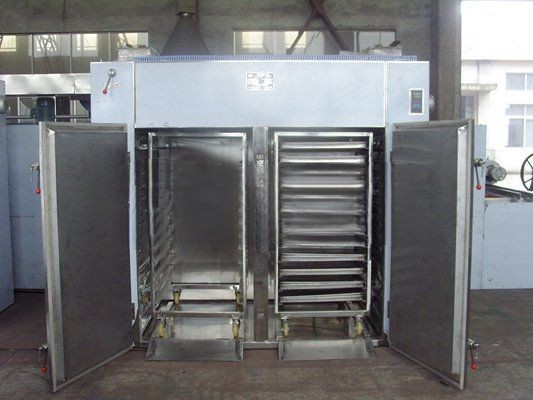

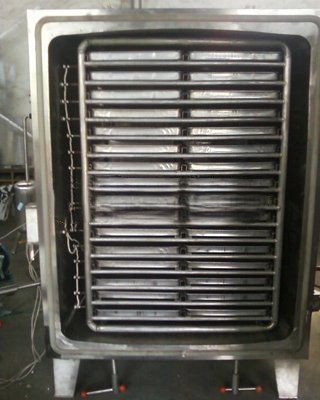

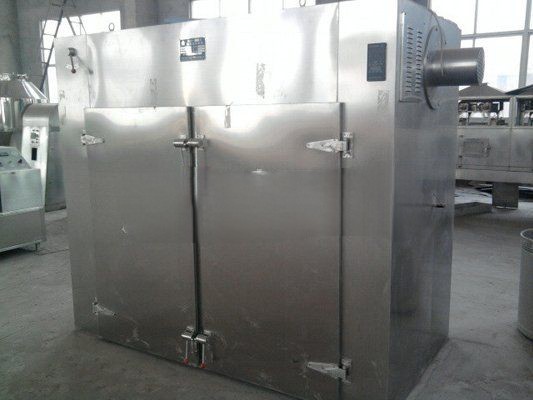

Pharmaceutical GMP oven

Product Description
◎Heating sources include steam, electricity, and electric steam dual-purpose.
◎Using temperature: steam heating 50-140℃, up to 150℃; electric heating 50-350℃;
◎The temperature is automatically controlled and recorded by a recorder;
◎The inner wall of the box is fully welded, and arcs are used at each transition Transition, no dead ends.
◎The airtightness of the whole machine is good, and the unique guide rail sealing device ensures the airtightness of the whole machine;
◎The air inlet is equipped with a high-efficiency air filter; the moisture outlet is equipped with a medium-efficiency air filter.
◎The two doors of the double-door oven realize mechanical interlocking;
◎All parts in the oven can be quickly disassembled and installed for easy cleaning;
◎The control system is equipped with text display and touch screen for selection;
the whole machine meets the requirements of "GMP".

Specification

Model SpecificationsEach drying capacity (kg)Fan power (kw)Consumption of steam (kg/h)Drying car ((vehicle) (set)Baking tray (only)Width × depth × height (mm)Upper and lower temperature (°C)
GMP-O350.458/161130×1100×1750±2
GMP-I1200.45182482300×1200×2000±2
GMP-II2400.9364962300×2200×2000±2
GMP-III3601.355461443430×2200×2000±2
GMP-IV4801.87281924460×2200×2290±2
