Dry Oven
-

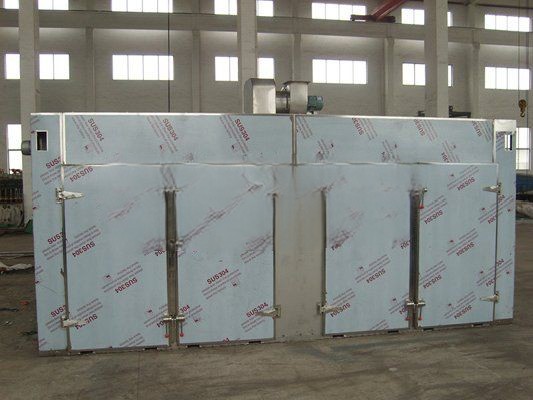

CT-C series hot air circulation oven
Product Introduction
CT-C series hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The entire circulation system is fully enclosed, which improves the thermal efficiency of the oven from 3-7% of the traditional drying room to the current 35- 45%, thermal efficiency can reach 50%. The successful design of the CT-C hot air circulation oven makes my country's hot air circulation oven reach the domestic and international level. It saves a lot of energy for our country and improves the economic benefits of enterprises. In 1990, the State Administration of Medicine issued an industry standard, and the unified model was RXH.
Applicable materials
It is suitable for heat curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, crude drugs, Chinese herbal medicines, extracts, powders, granules, granules, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried melons and fruits, sausages, plastic resins, electrical components, baking varnishes, etc.
Performance characteristics
Most of the hot air circulates in the box, which has high thermal efficiency and saves energy. Utilizing the function of forced ventilation, the box is equipped with an adjustable air distribution plate, and the material is dried evenly. The heat source can be steam, hot water, electricity, and far infrared, with a wide range of options. The noise of the whole machine is small and the operation is balanced. Temperature control, easy installation and maintenance. It has a wide range of applications and can dry various materials. It is a general drying equipment.
◎Heating sources include steam, electricity, far-infrared, and electric steam, for users to choose;
◎Using temperature: steam heating 50-140 o C, up to 150 o C;
◎Electricity, far-infrared temperature 50-350 o C ;
◎Automatic control system and computer control system are available for users to choose;
◎Common steam pressure is 0.02-0.8Mpa (0.2~8kg/m 2 )
;
◎Special requirements should be specified when ordering;
◎Non-standard oven prices are negotiable;
◎Using temperature is greater than 140 o C or less than 60 o C, please specify when ordering
; ;

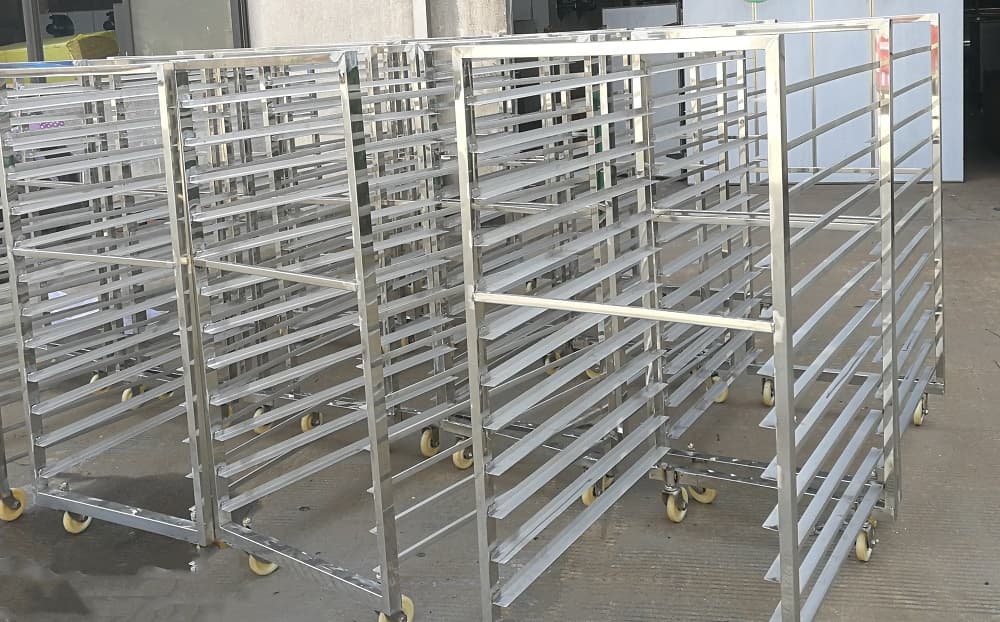

◎Baking pan size: 460×640×45(mm). -

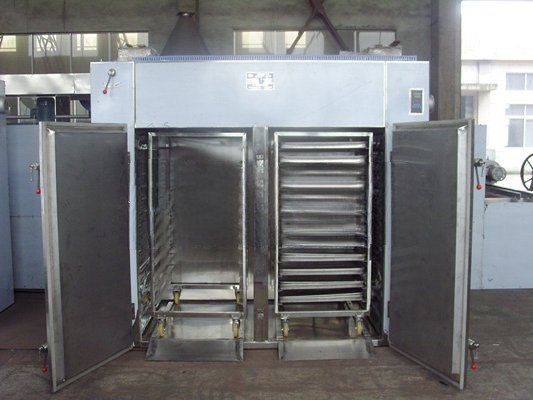

Pharmaceutical GMP oven
Product Description
◎Heating sources include steam, electricity, and electric steam dual-purpose.
◎Using temperature: steam heating 50-140℃, up to 150℃; electric heating 50-350℃;
◎The temperature is automatically controlled and recorded by a recorder;
◎The inner wall of the box is fully welded, and arcs are used at each transition Transition, no dead ends.
◎The airtightness of the whole machine is good, and the unique guide rail sealing device ensures the airtightness of the whole machine;
◎The air inlet is equipped with a high-efficiency air filter; the moisture outlet is equipped with a medium-efficiency air filter.
◎The two doors of the double-door oven realize mechanical interlocking;
◎All parts in the oven can be quickly disassembled and installed for easy cleaning;
◎The control system is equipped with text display and touch screen for selection;
the whole machine meets the requirements of "GMP".
