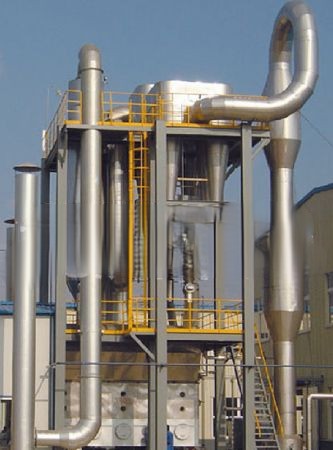

QG, JG, FG Airflow Dryer

Product overview
QG series pulsed airflow dryer is a large batch of drying equipment. It adopts the principle of instant drying, uses the rapid movement of heat-carrying air to drive wet materials, and makes wet materials suspend in the hot air, which strengthens the entire drying process. , the rate of heat and mass transfer is improved, and the unbound water can be almost completely removed from the air-dried material (for example, the water content of the feed material such as starch is ≤40%, and the finished product output can be 13.5%), and the dried The material will not deteriorate, and the output can be significantly improved compared with ordinary dryers, and users can obtain higher economic benefits in a short period of time.
Product features
QG airflow dryer is suitable for drying and dehumidifying powdery materials in pharmaceutical, chemical, food, building materials, plastics and other industries, such as: starch, fish meal, salt, distiller's grains, feed, gluten, plastic resin, mineral powder, coal powder , sugar chloric acid, A·S·C benzoic acid, 2·3·acid, polychloroacetic acid polypropylene, sodium sulfate, sodium pyrosulfite and other materials drying.
Our company consults externally on airflow drying equipment, and designs and manufactures non-stereotyped airflow dryers on behalf of us.

Scope of application
The company manufactures QG airflow drying equipment, introduces advanced technology and equipment from the United States, and has reached the international first-class advanced level through unique design. Less, versatile, is the ideal modern equipment.
Working principle

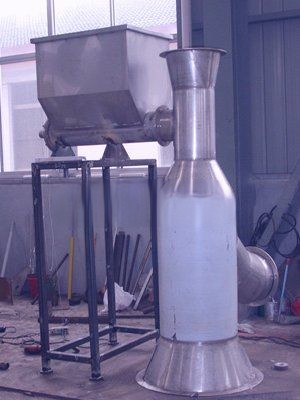

Airflow drying can quickly remove water (mainly surface water) from easily dehydrated particles and powdery materials. In air drying, the quality of the dried product is controlled due to the short residence time of the material in the dryer. Our factory's enhanced airflow drying is composed of adding a set of intensifier whose speed can be adjusted steplessly on the basic type. The wet material enters the intensifier through the screw feeder and is fully mixed with the hot air flow, crushed and pushed by the rapidly rotating hammer. Next, the material is broken into fine particles, and moves toward the outlet while drying, and then enters the drying pipe under the suction of the wind, and is further dried evenly. Wet heavy particles that cannot be attracted by the wind continue to be crushed and dried until they can be picked up by the wind and enter the drying tube.
Main purpose
This machine is especially suitable for materials with relatively large moisture content, wet materials in the form of paste, and materials that cannot be dried by other airflow drying methods, such as: white carbon black, copolymers of vinyl acetate and vinyl chloride, cellulose acetate wadding, catalysts , CMC, CT-1 resin, gypsum, electrolytic manganese dioxide, ammonium anthraquinone sulfonate, fluorspar, diatomaceous earth, silica gel catalyst, bone meal, high territory, potassium perchlorate sulfonium drugs, synthetic resin, active gluten , activated clay, chemical filter cake, rutile diamond white powder, sebacic acid, copper sulfate, aluminum sulfate, sodium sulfate, calcium phosphate, phosphated starch, dyes, calcium citrate, coal slime, rice bran for bread , Clay, Clay Cement, Urea, Bentonite, Spherical Clay, Aluminum Hydroxide, Barium Hydroxide, Calcium Lactate, Food, Washed High Territory, Cyanuric Acid, Gypsum Oar, Lime, Biological Products, Carbon Black, Calcium Carbonate Slurry, Sludge residue, organic chemicals aluminum stearate, iron oxide, organic fuel, corn gluten feed, damp mud, mica powder, pharmaceuticals, pigments, potassium dichromate pulp, distiller's grains, etc.
