At present, it has been widely used in industrial sectors such as sugar refining, medicine, fertilizer, chemical industry, plastics, dairy products, salt industry and mining and metallurgy.
Continuous operation is possible with low function consumption.
Driven by a vibrating motor, it runs smoothly, is easy to maintain, has low noise and has a long service life.
MOQ:1
Specification
| Model | Fluidized Bed Area (㎡) | Inlet Air Temperature (℃) | Outlet Temperature (℃) | Evaporated Moisture (Kg/h) | Vibration Motor |
| ZLG3x0.30 | 0.9 | 70-140 | 40-70 | 20-35 | 2xYZS8-6 0.75kw |
| ZLG4.5x0.30 | 1.35 | 35-50 | 2xYZS10-6 0.75kw | ||
| ZLG4.5x0.45 | 2.025 | 50-70 | 2xYZS15-6 1.1kw | ||
| ZLG4.5x0.60 | 2.7 | 70-90 | 2xYZS15-6 1.1kw | ||
| ZLG6x0.45 | 2.7 | 80-100 | 2xYZS15-6 1.1kw | ||
| ZLG6x0.60 | 3.6 | 100-130 | 2xYZS20-6 1.5kw | ||
| ZLG6x0.75 | 4.5 | 120-170 | 2xYZS20-6 1.5kw | ||
| ZLG6x0.90 | 5.4 | 140-175 | 2xYZS30-6 2.2kw | ||
| ZLG7.5x0.60 | 4.5 | 130-150 | 2xYZS30-6 2.2kw | ||
| ZLG7.5x0.75 | 5.625 | 150-180 | 2xYZS40-6 3kw | ||
| ZLG7.5x0.90 | 6.75 | 160-210 | 2xYZS40-6 3kw | ||
| ZLG7.5x1.20 | 9.0 | 200-280 | 2xYZS50-6 3.7kw | ||
| ZLG7.5x1.50 | 11.25 | 230-330 | 2xYZS50-6 3.7kw | ||
| ZLG8x1.80 | 14.4 | 290-420 | 2xYZS75-6 5.5kw |
Working Principle

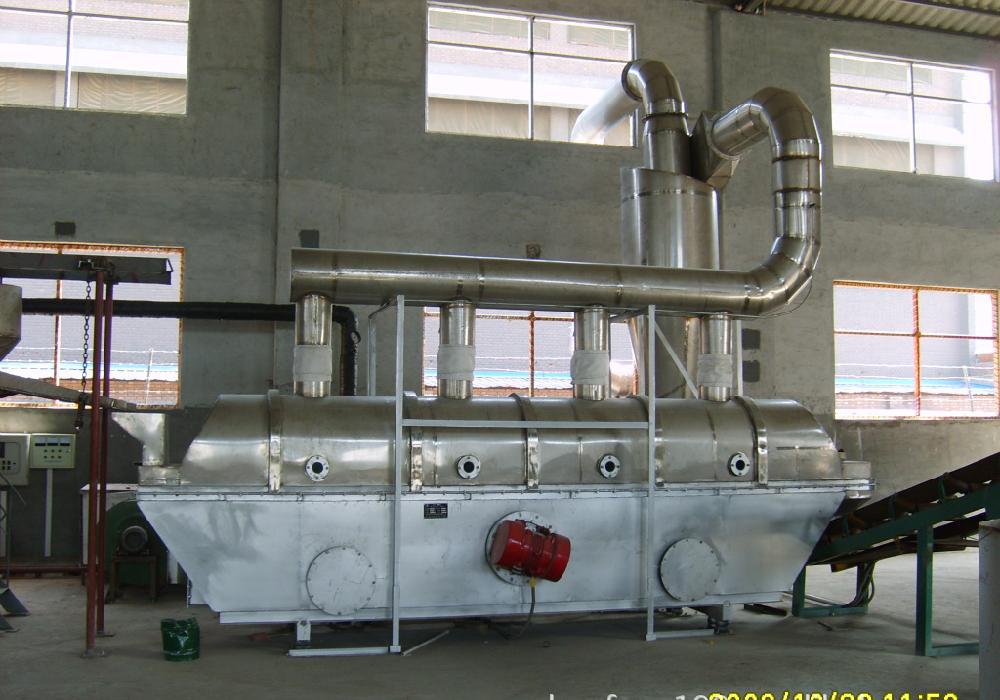

The material enters the dryer from the feeding port. Under the action of vibration force, the material moves forward continuously along the horizontal fluidized bed, and the hot air passes through the fluidized bed upwards to contact the wet material for heat exchange. The wet air is dedusted by the cyclone separator. There is an exhaust port to discharge, and the dry material is discharged from a discharge port.

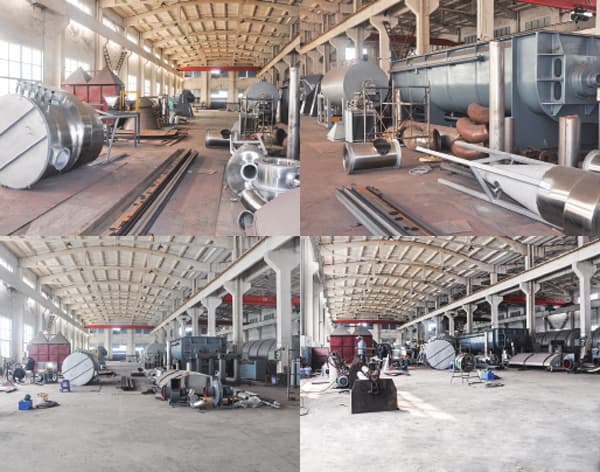

Production
