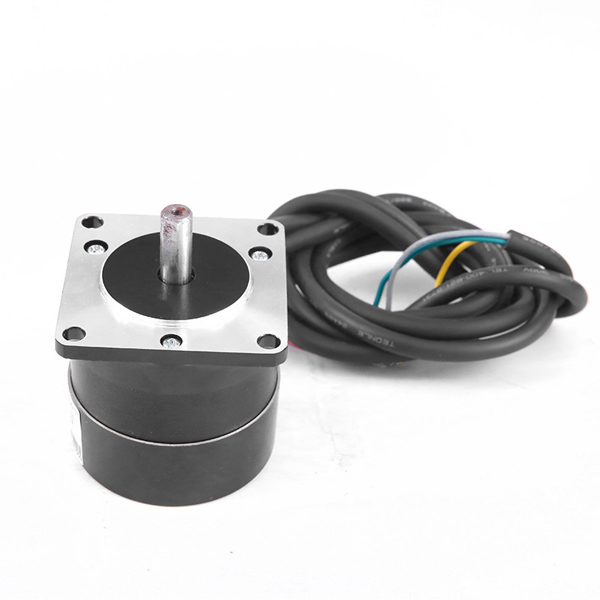

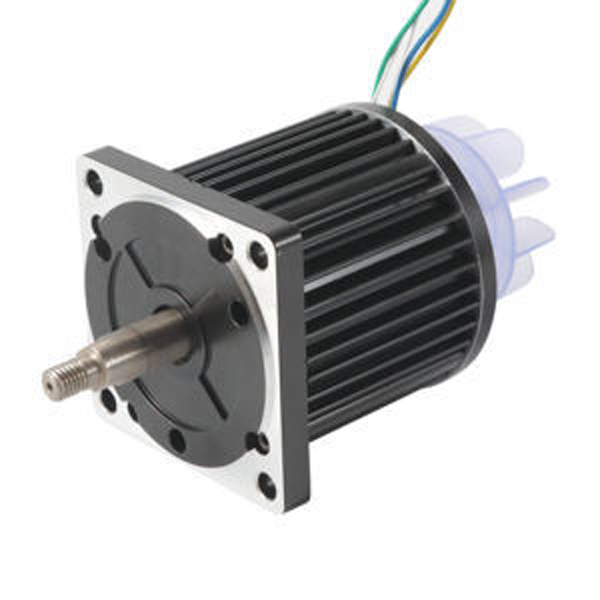

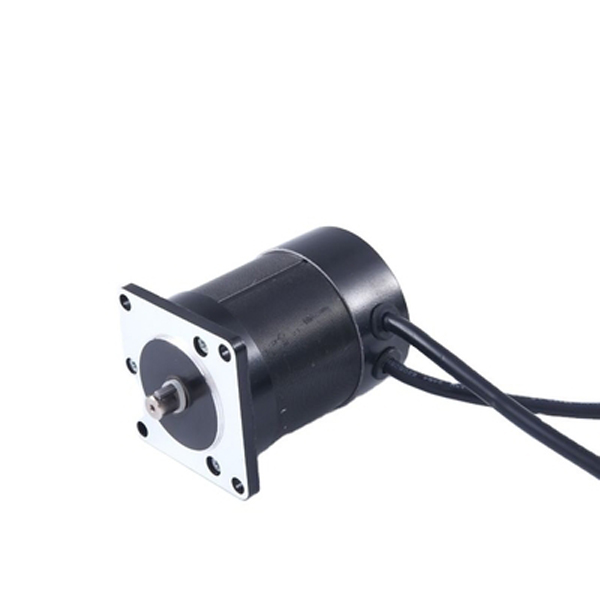

Better speed versus torque characteristics.
High dynamic response.
High efficiency.Long operating life.
Noiseless operation.
Higher speed ranges.
OEM & ODM service.
Sample available.
Description
| Hall Effect Angle | 120 Degree Electrical Angle | Phase | 3, 3-phase |
| Environmental Conditions | -20℃~50℃ | Axial Run Out | 0.025mm |
| Magnet Material | NdFeB | Insulation Class | Class B |
| Insulation Resistance | 100MΩmin 500VDC | Protection Class | IP44 |

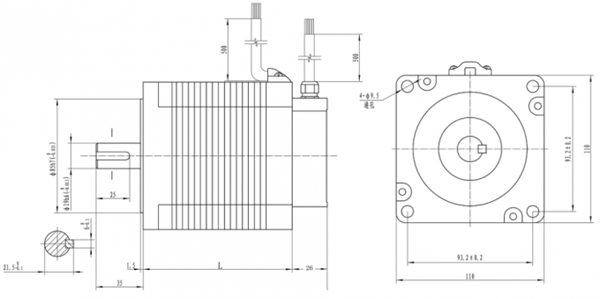

Specification
| Motor Model | 86BL8048 | 86BL9048 | 86BL10531 | 86BL11548 | 86BL13048 | 86BL13031 | |
| Number of Poles | 4 | 4 | 4 | 4 | 4 | 4 | |
| Voltage | VDC | 48 | 310 | 310 | 48 | 48 | 310 |
| Rated Speed | rpm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Rated Torque | N.m | 1 | 1.27 | 1.8 | 2.1 | 2.5 | 2.5 |
| Rated Current | Amps | 8.5 | 10.8 | 2.2 | 18 | 19.5 | 3.3 |
| Rated Power | Watt | 314 | 400 | 565 | 659 | 785 | 785 |
| Max Torque | N.m | 3 | 3.81 | 5.4 | 6.3 | 7.5 | 7.5 |
| Torque Constant | N.m / Amps | 0.133 | 0.133 | 0.84 | 0.133 | 0.133 | 0.8 |
| Back Emf | V / Krpm | 9.8 | 9.8 | 62 | 9.7 | 10.2 | 62 |
| Rotor Inertia | Kg.mm2 | 120 | 160 | 220 | 260 | 320 | 320 |
| Body Length | mm | 80 | 90 | 105 | 115 | 130 | 130 |
| Weight | kg | 2.2 | 2.6 | 3.4 | 3.8 | 4.3 | 4.3 |
Application
Consumer electronics
Transport
Heating and ventilation
Industrial engineering
Production
